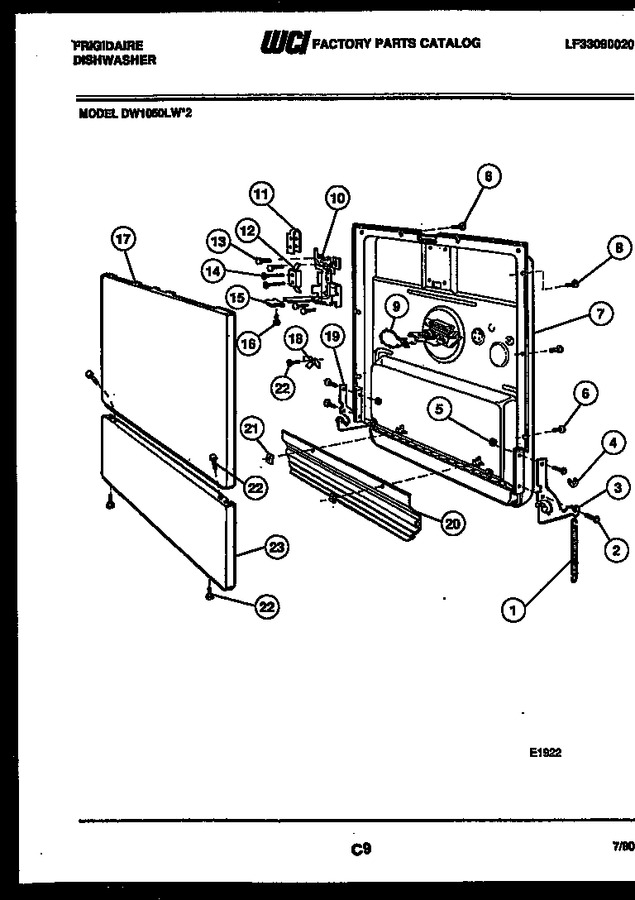

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809360		Spring - Door		Appelez-nous	-
2	3018056		Screw		Appelez-nous	-
3	805681		Arm Assy. - Rh		Appelez-nous	-
4	3014666		Pad Spring		Appelez-nous	-
5	3018052		Nut		Appelez-nous	-
6	WP7101P126-60		Screw   (Replaces: 809055)			Immediately	$ 6.85
7	3202535		Door Assy.		Appelez-nous	-
8	808749		Screw		Appelez-nous	-
9	809075		Tie - Wire		Appelez-nous	-
10	5300809832		Latch Assy.		Appelez-nous	-
11	3018041		Cover - Switch		Appelez-nous	-
12	5303018043		Switch		Appelez-nous	-
13	809029		Screw		Appelez-nous	-
14	3018042		Screw		Appelez-nous	-
15	808712		Knob Latch		Appelez-nous	-
16	809163		Screw		Appelez-nous	-
18	3018047		Terminal Grounding		Appelez-nous	-
19	805682		Arm Assy. - Lh		Appelez-nous	-
20	3202539		Baffle Seal		Appelez-nous	-
21	5300809695		Speed Nut		Appelez-nous	-
22	3018067		Screw		Appelez-nous	-
