SELECT A DIAGRAM

02 - Console And Control Parts


03 - Cam


04 - Door Parts


05 - Tub And Frame Parts


06 - Motor Pump Parts


07 - Power Dry And Motor Parts


08 - Racks And Trays

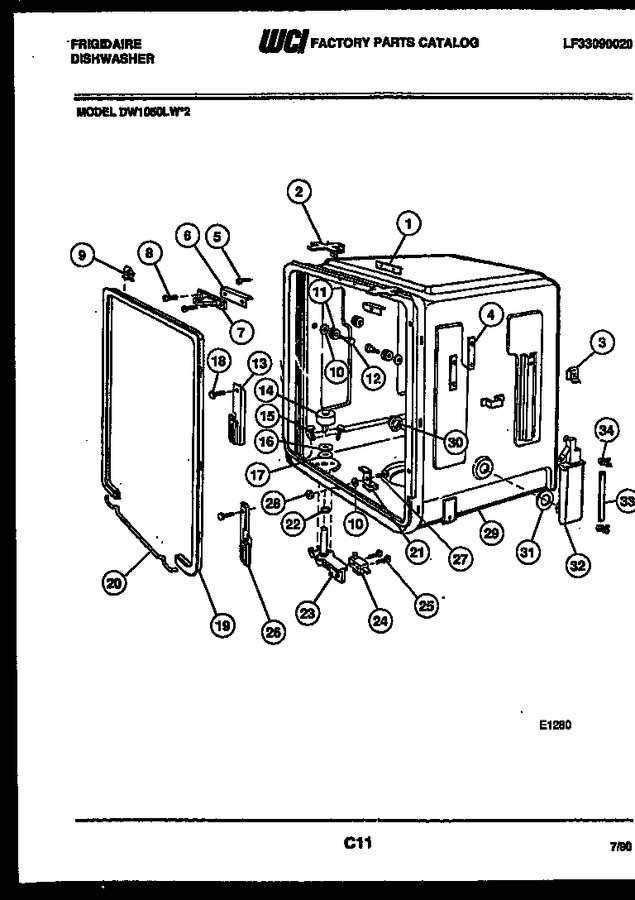

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	808868		Plate - Tapping		Appelez-nous	-
2	5300809677		Clip		Appelez-nous	-
3	3018093		Nut		Appelez-nous	-
4	3018073		Plate - Tapping		Appelez-nous	-
5	806976		Screw		Appelez-nous	-
6	809214		Shim - Strike		Appelez-nous	-
7	3014689		Strike - Door		Appelez-nous	-
8	3018072		Screw		Appelez-nous	-
9	3014661		Tub Gasket Clip Kit (includes 21)		Appelez-nous	-
10	3018074		Washer		Appelez-nous	-
11	807180		Roller - Tub		Appelez-nous	-
12	3018075		Screw & Washer Kit (includes 10)		Appelez-nous	-
13	807470		Arm Guide - Lh		Appelez-nous	-
14	5300809861		Float		Appelez-nous	-
15	5300809697		Screw		Appelez-nous	-
16	3018077		Plate - Float		Appelez-nous	-
17	3018078		Gasket - Float		Appelez-nous	-
18	806539		Screw		Appelez-nous	-
19	5303208324		Gasket & Wire Assy. (includes 9 & 20)		Appelez-nous	-
20	809320		Wire - Gasket		Appelez-nous	-
21	3018082		Clip		Appelez-nous	-
22	3018083		O - Ring		Appelez-nous	-
23	5300809859		Float Switch Kit (includes 14, 16, 17, 22, 24 & 25)		Appelez-nous	-
24	5300809863		Switch - Float				$ 65.73
25	5303208367		Screw		Appelez-nous	-
26	807471		Arm Guide - Rh		Appelez-nous	-
27	3018081		Screw		Appelez-nous	-
28	3018080		Nut		Appelez-nous	-
29	5300809263		Tub & Gasket Assy.		Appelez-nous	-
30	3018090		Nut		Appelez-nous	-
31	3018091		Gasket - Water Inlet		Appelez-nous	-
32	5303018092		Water Inlet		Appelez-nous	-
33	3018094		Tubing - Inlet (includes 34)		Appelez-nous	-
34	3018095		Clamp		Appelez-nous	-
*33628	5303018096		Tub Touch - Up Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
