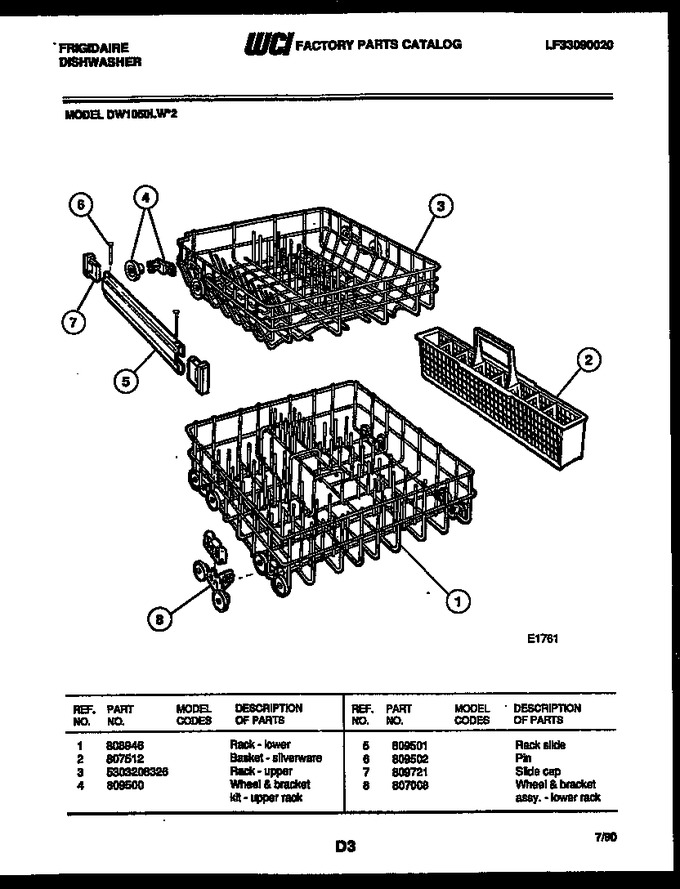

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808946 | Rack - Lower |
|
- | |||||
| 2 | 807512 | Basket - Silverware |
|
- | |||||
| 3 | 5303208326 | Rack - Upper |
|
- | |||||
| 4 | 809500 | Wheel & Bracket Kit-upper Rack |
|
- | |||||
| 5 | 809501 | Rack Slide |
|
- | |||||
| 6 | 809502 | Pin |
|
- | |||||
| 7 | 809721 | Slide Cap |
|
- | |||||
| 8 | 807008 | Wheel & Bracket Assy. - Lower Rack |
|
- |
