Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300808854 Switch - Rocker Appelez-nous -
2 5300809448 Knob - Timer Appelez-nous -
3 5300805324 Screw Appelez-nous -
4 5300809576 Panel - Control Appelez-nous -
5 3018031 Clamp Appelez-nous -
6 5300809597 Timer Appelez-nous -
7 5300809175 Screw 8b X 7/16`` Appelez-nous -
8 3018047 Terminal Grounding Appelez-nous -
9 5303208321 Panel - Overlay Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

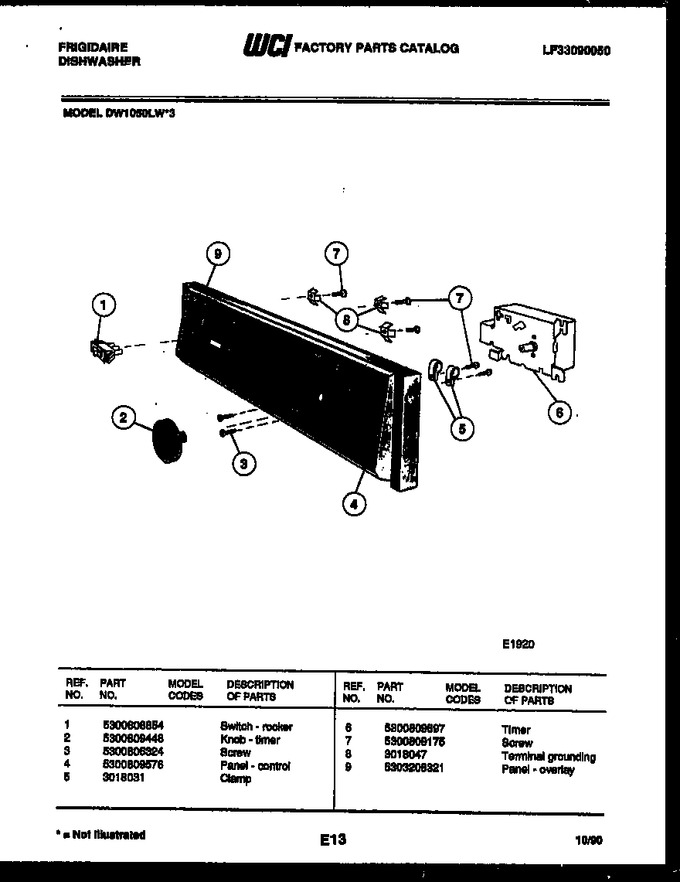

Diagram for DW1050LW3
