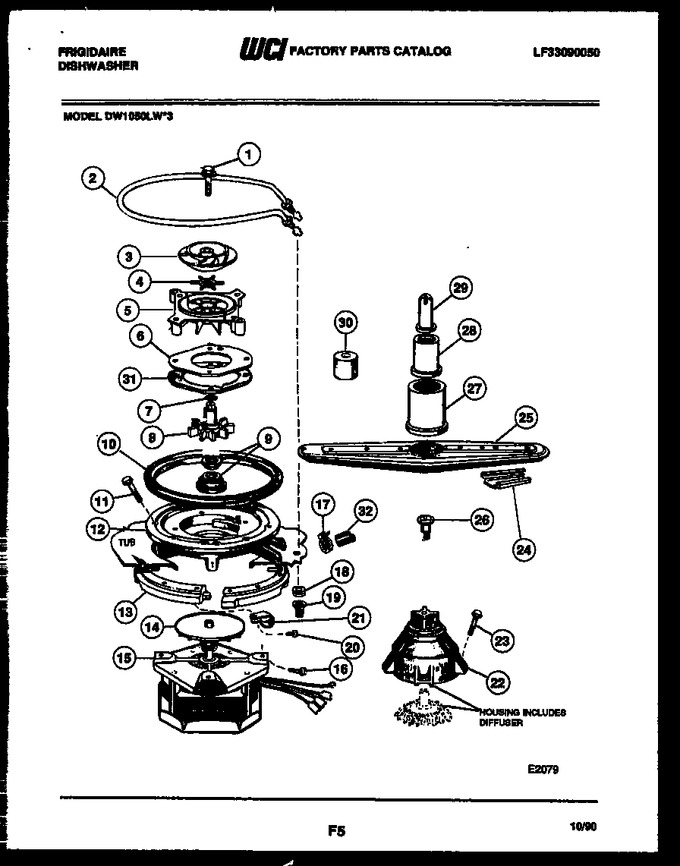

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw				$ 12.06
2	3202593		Heater (includes 22 & 23)		Appelez-nous	-
3	5300809918		Upper Impeller				$ 83.45
4	3100003901		Blade-macerator		Appelez-nous	-
5	5300809921		Spacer Plate				$ 12.39
6	5300807884		Pump Plate				$ 48.51
7	5300806521		O-ring				$ 32.42
8	5300809909		Pump Seal Kit (includes 7, 8, 9)				$ 71.56
9	5300803903		Water Seal				$ 109.86
10	5300809008		Gasket				$ 4.99
11	5300807268		Screw				$ 5.93
12	5300809939		Pump Housing				$ 88.83
13	5300807712		Clamp Ring (2)		Appelez-nous	-
14	5300809366		Watershield Assy				$ 2.26
15	5300809985		Motor Assy (includes 1, 10, 23)		Appelez-nous	-
16	5300809022		Screw		Appelez-nous	-
17	5300808186		Hose Clamp		Appelez-nous	-
18	5300806833		Heater Grommet				$ 5.34
19	154106202		Heater Nut   (Replaces: 5300806834)			Immediately	$ 18.32
20	5300807270		Screw				$ 6.72
21	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
22	5300809953		Upper Housing Assy		Appelez-nous	-
23	5300807358		Screw		Appelez-nous	-
24	5300809938		Spray Arm Shield				$ 37.05
25	5300809954		Spray Arm Assy				$ 145.95
26	5300809018		Spray Arm Bolt		Appelez-nous	-
27	5300808178		Tower Base		Appelez-nous	-
28	5300808179		Tower Section				$ 14.02
29	5300808180		Tower Tip				$ 10.97
30	5300803923		Seal Installation Tool				$ 57.38
31	5300807709		Pump Gasket				$ 54.26
32	5300809112		Drain Hose, Corrugated				$ 63.47
