02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

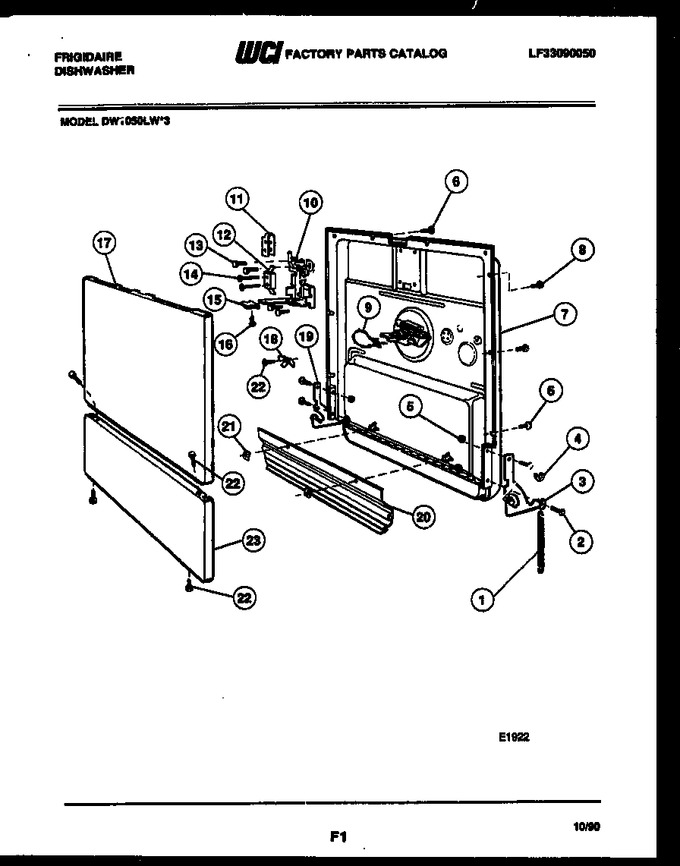

| 1 | 809360 | Spring - Door |
|
- | |||||
| 2 | 5300803311 | Screw |
|
- | |||||
| 3 | 5300805681 | Arm Assy. Rh |
|
$ 98.70 | |||||
| 4 | 5300805884 | Pad-spring |
|
- | |||||
| 5 | 3018052 | Nut |
|
- | |||||
| 6 | 5300809055 | Screw |
|
$ 1.21 | |||||
| 7 | 5300809052 | Door Assy |
|
- | |||||
| 8 | 3018052 | Screw |
|
- | |||||
| 9 | 5300809075 | Tie - Wire |
|
- | |||||
| 10 | 5300809832 | Latch Assy. |
|
- | |||||
| 11 | 3018041 | Cover - Switch |
|
- | |||||
| 12 | 5303018043 | Switch |
|
- | |||||
| 13 | 5300809029 | Screw |
|
- | |||||
| 14 | 3018042 | Screw |
|
- | |||||
| 15 | 5300808712 | Knob - Latch |
|
$ 31.71 | |||||
| 16 | 3202538 | Screw |
|
- | |||||
| 17 | 5300808949 | Panel - Door (white) |
|
- | |||||
| 18 | 3018047 | Terminal Grounding |
|
- | |||||
| 19 | 5300805682 | Arm Assy L.h. |
|
$ 93.56 | |||||
| 20 | 5300809025 | Baffle - Seal |
|
$ 56.49 | |||||
| 21 | 5300809695 | Speed Nut |
|
- | |||||
| 22 | 3018067 | Screw |
|
- | |||||
| 23 | 5300809108 | Panel - Access (white) |
|
- |
