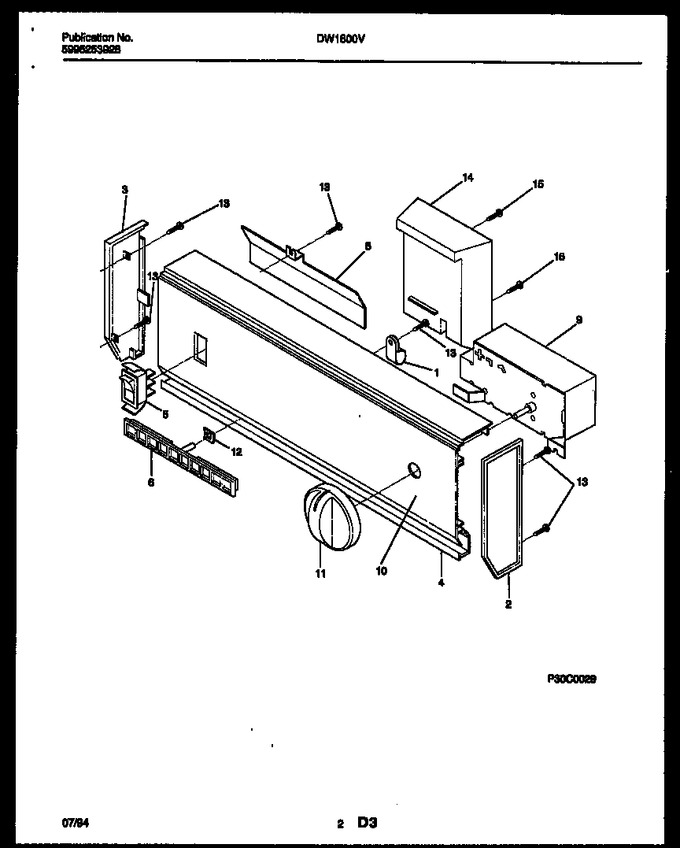

02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 240396801 | Clamp (Replaces: 5300808442) |
|
$ 19.13 | |||||
| 2 | 5300808693 | End Cap-rh |
|
- | |||||
| 3 | 5300808694 | End Cap-lh |
|
- | |||||
| 4 | 154077101 | Control Panel |
|
- | |||||
| 5 | 5300808854 | Switch - Rocker |
|
- | |||||
| 6 | 5300808477 | Vent Grille |
|
- | |||||
| 8 | 5300808574 | Shield-vent Slot |
|
- | |||||
| 9 | 154194901 | Timer |
|
$ 188.00 | |||||
| 10 | 154097401 | Insert-control Panel |
|
- | |||||
| 11 | 5300809495 | Knob-timer |
|
$ 80.48 | |||||
| 12 | 5300808475 | Speednut |
|
- | |||||
| 13 | 5300809175 | Screw 8b X 7/16`` |
|
- | |||||
| 14 | 5300807425 | Splash Pan |
|
- | |||||
| 15 | 5300806894 | Screw-splash Pan (2) |
|
- | |||||
| *10704 | 154196601 | Wiring Harness |
|
- | |||||
| 9A | 154152201 | Shield-timer (non-illustrated) |
|
- |
