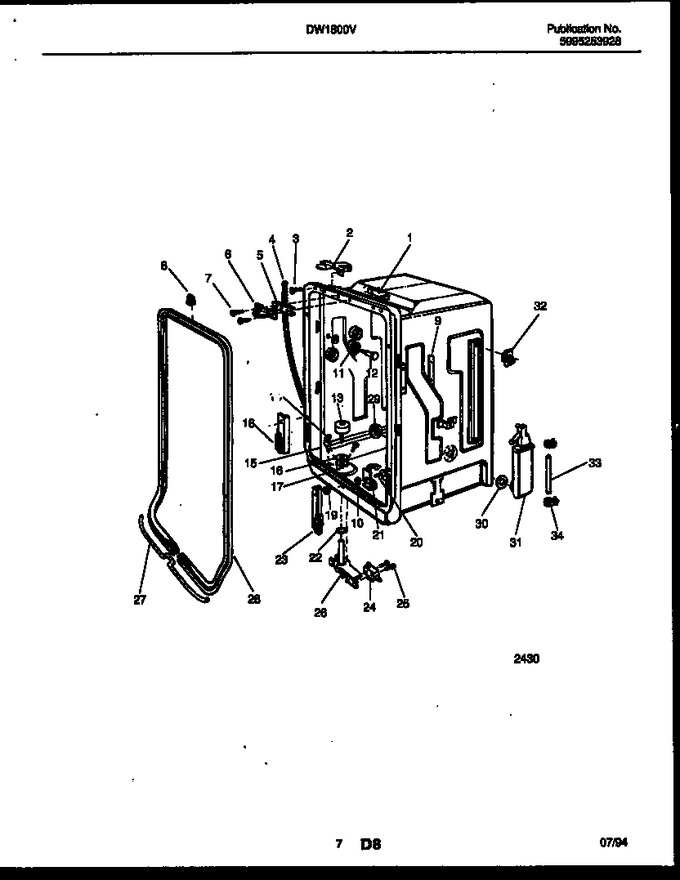

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808868 | Latch Tapping Plate |
|
- | |||||
| 2 | 5300809677 | Attach Clip |
|
- | |||||
| 3 | 5300806894 | Screw No. 8 X 5/16`` Lg. C.r. Truss Hd. St. St. |
|
- | |||||
| 4 | 3100021801 | Drain Hose, Corrugated |
|
$ 73.00 | |||||
| 5 | 5300809214 | Shim |
|
- | |||||
| 6 | 5300807015 | Door Strike |
|
- | |||||
| 7 | 131302901 | Screw No. 10 X 3/4`` Lg. C.r. Flat Hd. Chrome Pl. (Replaces: 5300806890) |
|
$ 4.96 | |||||
| 8 | 5300805763 | Tub Gasket Clip Kit (inlcudes Key No. 21) |
|
- | |||||
| 9 | 5300807038 | Tapping Plate |
|
$ 4.94 | |||||
| 10 | 5300809044 | Washer |
|
- | |||||
| 11 | 5304507405 | Tub Roller (Replaces: 154080001) |
|
Immediately | $ 25.79 | ||||
| 12 | 5300809048 | Screw |
|
$ 11.87 | |||||
| 13 | 5300809861 | Float |
|
- | |||||
| 14 | 154103701 | Screw No. 10 X 1 Lg. Hex Washer Hd. St. St. |
|
- | |||||
| 15 | 5300809716 | Tub & Gasket Assembly |
|
- | |||||
| 16 | 5300808064 | Float Tube Plate |
|
- | |||||
| 17 | 5300808063 | Float Tube Gasket |
|
$ 6.14 | |||||
| 18 | 5300807599 | Counterbalance Arm Guide-lh |
|
- | |||||
| 19 | 5300803346 | Nut |
|
- | |||||
| 20 | 5300803319 | Screw No. 8-32 X 1/2`` Lg. C.r. Truss Hd. St. |
|
- | |||||
| 21 | 5300808115 | Dam Clip |
|
- | |||||
| 22 | 5300807759 | O - Ring |
|
$ 4.88 | |||||
| 23 | 5300807600 | Counterbalance Arm Guide-rh |
|
- | |||||
| 24 | 5300809863 | Float Switch |
|
$ 65.73 | |||||
| 25 | 5300809864 | Screw No. 4-24 X 5/8`` Lg. Pan Hd. Phillips Lmp. |
|
- | |||||
| 26 | 5300809859 | Float Switch Kit |
|
- | |||||
| 27 | 154059402 | Junction Rod |
|
- | |||||
| 28 | 5300809633 | Tub Gasket & Wire Assembly (includes Key Nos. 8 & 27) |
|
$ 201.76 | |||||
| 29 | 5300805669 | Nut |
|
- | |||||
| 30 | 154053601 | Water Inlet Gasket |
|
- | |||||
| 31 | 5300806470 | Water Inlet Assembly |
|
- | |||||
| 32 | 5300806291 | Cage Nut |
|
- | |||||
| 33 | 5300807891 | Water Inlet Tubing (includes Key No. 34) |
|
- | |||||
| 34 | 5300807813 | Clamp |
|
- | |||||
| *10704 | 154641601 | Tub Insulation (Replaces: 5303208369) |
|
$ 6.15 | |||||
| *10704 | 5304469950 | Tub Touch - Up Kit (Replaces: 5300807509) |
|
Immediately | $ 89.95 |
