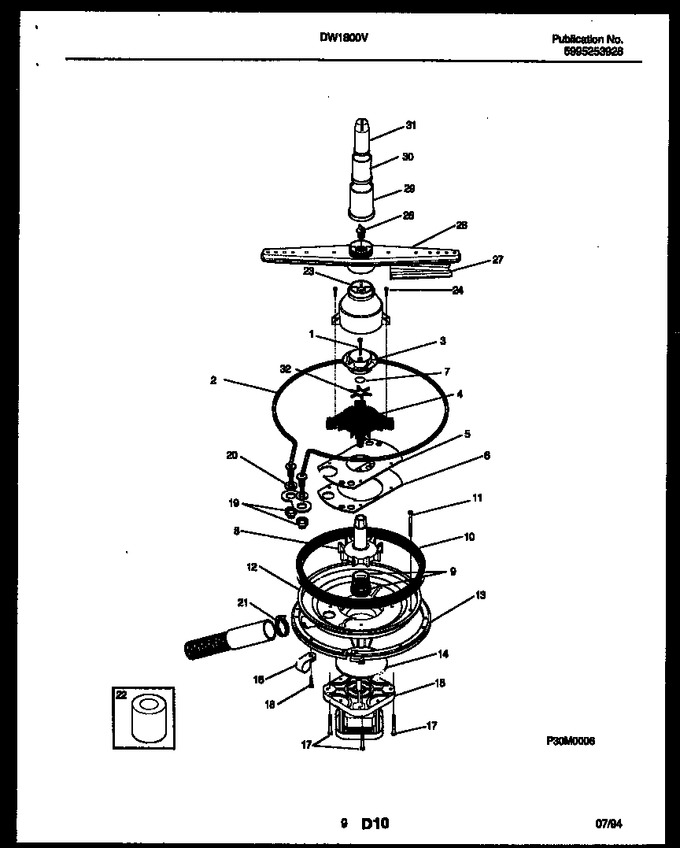

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300806353		Screw-no 10-32 X 2 1/4``				$ 12.06
2	5303943077		Heater		Appelez-nous	-
3	5300809918		Upper Impeller				$ 83.45
4	5300809921		Spacer Plate				$ 12.39
5	5300807884		Pump Plate				$ 48.51
6	5300807709		Pump Gasket				$ 54.26
7	5300806521		O-ring				$ 32.42
8	5300809909		Pump Impeller Kit				$ 71.56
9	5300803903		Water Seal				$ 109.86
10	5300809008		Gasket				$ 4.99
11	5300807268		Screw-no. 10 X 1`` Lg. Hex Washer Hd. St.				$ 5.93
12	5300809919		Pump Housing		Appelez-nous	-
13	5300807712		Clamp Ring		Appelez-nous	-
14	5300809366		Watershield Assembly				$ 2.26
15	5300809984		Motor Assembly		Appelez-nous	-
16	240396801		Clamp   (Replaces: 5300808442)				$ 19.13
17	5300809022		Screw No. 10 X 1`` Lg. Hex Washer Hd. Cad. Pl.		Appelez-nous	-
18	5300807270		Screen				$ 6.72
19	154106202		Heater-nut   (Replaces: 154106201)			Immediately	$ 18.32
20	5300806833		Heater Grommet				$ 5.34
21	5300808186		Hose Clamp		Appelez-nous	-
22	5300803923		Seal Installation Tool				$ 57.38
23	5300809953		Housing Diffuser		Appelez-nous	-
24	5300807359		Screw No. 10 X 1 3/4`` Lg. Hex Hd. St. St.		Appelez-nous	-
26	5300809018		Spray Arm Bolt		Appelez-nous	-
27	3015604		Spray Arm Shield		Appelez-nous	-
28	5303943076		Spray Arm Assembly		Appelez-nous	-
29	154122502		Tower Base				$ 38.90
30	154122601		Tower Section				$ 55.07
31	154122702		Tower Tip		Appelez-nous	-
32	5300809920		Macerator				$ 49.19
34	5300809937		Valve, Check				$ 74.71

    View Diagram in Separate Window       Print Part List
