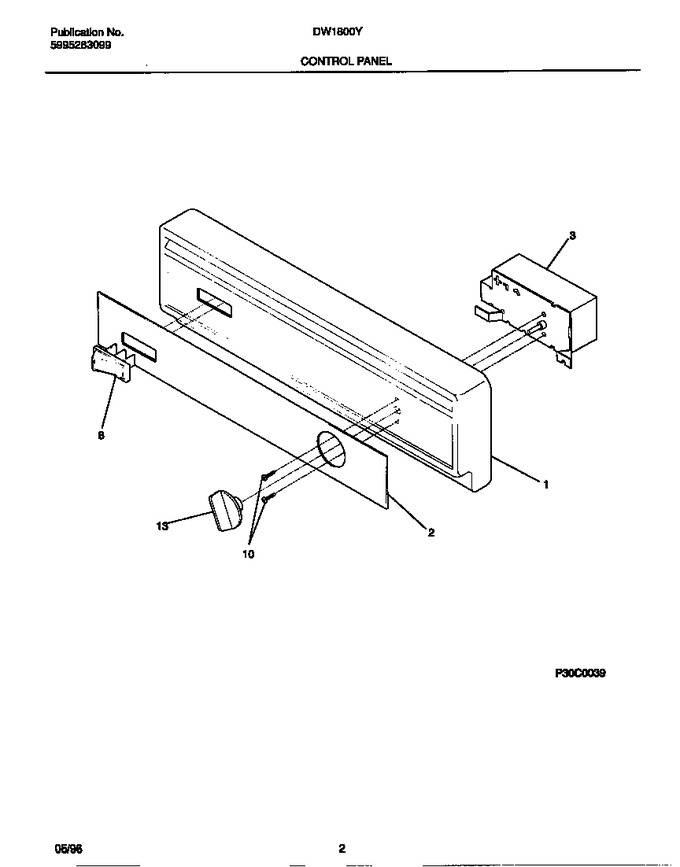

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154220102		Panel-control,black		Appelez-nous	-
2	154232901		Insert-control Pnl, Black		Appelez-nous	-
3	154228401		Timer		Appelez-nous	-
8	5300808854		Switch - Rocker		Appelez-nous	-
10	154095701		Screw-timer, Thread Rolling, (2)				$ 10.34
13	154239301		Knob-timer, Black				$ 48.46
*66960	5300809175		Screw 8b X 7/16``		Appelez-nous	-
*66961	154131204		Shield-timer		Appelez-nous	-
*66962	5300809144		Shield - Wire		Appelez-nous	-
*66963	154233801		Harness-wiring, Main		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
