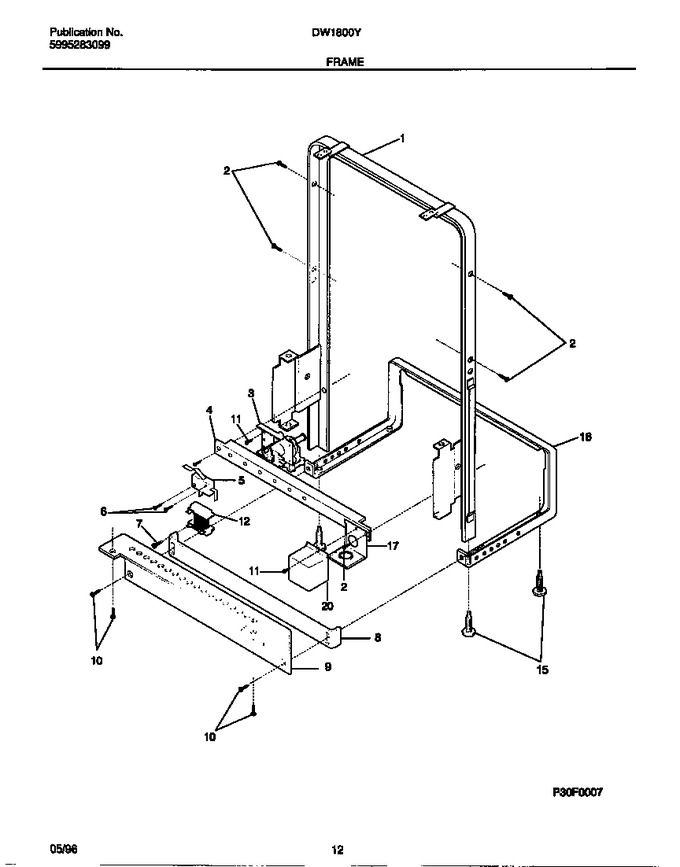

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154218801 | Front Frame Assy |
|
- | |||||
| 2 | 154041001 | Screw,plask 1 ,10-10 X 9/16 |
|
- | |||||
| 3 | 154637401 | Valve-water (Replaces: 154219602) |
|
Immediately | $ 21.36 | ||||
| 4 | 154219101 | Brace-front |
|
- | |||||
| 5 | 154773201 | Bracket-float Switch (not Illustrated) (Replaces: 154209801) |
|
Immediately | $ 55.29 | ||||
| 5 | 154225501 | Switch,float |
|
$ 84.68 | |||||
| 6 | 154025901 | Screw, Truss Head, 10 X 0.625 |
|
- | |||||
| 7 | 5300804672 | Screw-relay |
|
- | |||||
| 8 | 154220802 | Toeplate-adjustable |
|
- | |||||
| 9 | 154220702 | Toeplate |
|
- | |||||
| 10 | 154419403 | Screw,8a X .375`` (Replaces: 5300808658) |
|
$ 13.10 | |||||
| 11 | 134154100 | Screw-10-32 X 3/8 (Replaces: 154200701) |
|
$ 13.46 | |||||
| 12 | 5303351059 | Relay-motor |
|
$ 8.35 | |||||
| 15 | 154210902 | Screw-leveling |
|
- | |||||
| 16 | 154219001 | Frame-rear |
|
- | |||||
| 17 | 154112901 | Bracket-junction Box |
|
- | |||||
| 20 | 154128301 | Cover-junction Box |
|
- | |||||
| *66970 | 154200601 | Screw-10-16 X 3/8 |
|
$ 7.98 | |||||
| *66971 | 5300807373 | Washer |
|
- |
