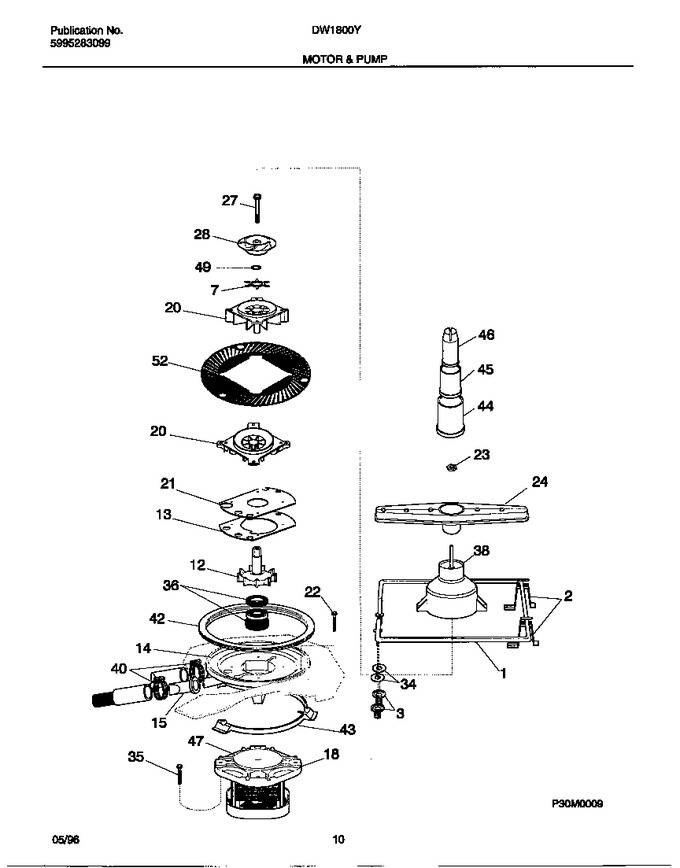

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	154220901		Heater				$ 214.31
2	154211001		Bracket-heater				$ 32.35
3	154106202		Nut,heater ,(2)   (Replaces: 154106201)			Immediately	$ 18.32
7	5300809920		Macerator				$ 49.19
12	5300809909		Impeller-lower				$ 71.56
13	5300807709		Gasket-pump				$ 54.26
14	5303943123		Housing-pump		Appelez-nous	-
15	5300809937		Check Valve				$ 74.71
18	5300809984		Motor		Appelez-nous	-
20	5300809921		Plate-spacer				$ 12.39
21	5300807884		Plate-pump				$ 48.51
22	154200201		Screw-pump Housing		Appelez-nous	-
23	154234301		Nut-spray Arm				$ 51.32
24	154219201		Spray Arm-lower				$ 196.77
27	5300806353		Screw-upper Impeller				$ 12.06
28	5300809918		Impeller-upper				$ 83.45
34	154064901		Washer-insulating				$ 8.14
35	154200901		Screw-motor Mtg				$ 14.39
36	5300803903		Seal Kit				$ 109.86
38	154158402		Diffuser				$ 96.35
40	154611101		Clamp-hose   (Replaces: 154106801)				$ 12.05
42	5300809586		Gasket-pump				$ 85.64
43	5300809590		Clamp,pump				$ 47.93
44	154122502		Base-tower				$ 38.90
45	154122601		Middle-tower				$ 55.07
46	154122701		Tip-tower		Appelez-nous	-
47	5300809366		Watershield Assy				$ 2.26
49	5300809366		Watershield Assy				$ 2.26
52	154207502		Plate-strainer				$ 27.77
*66969	154103701		Screw, Torx Truss, 10 .875, Plate		Appelez-nous	-
