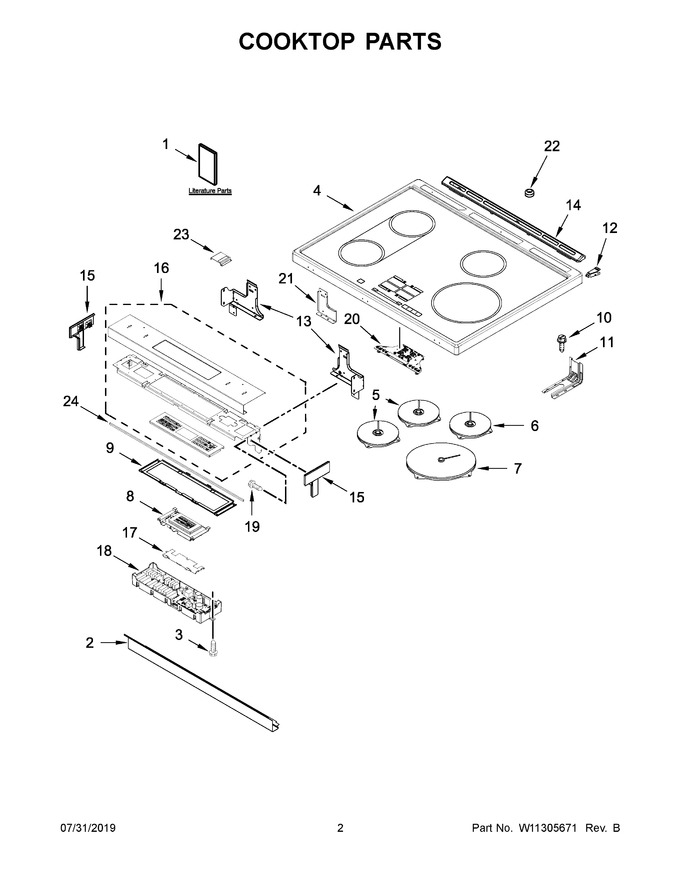

02 - Cooktop Parts
03 - Interior Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10744014 | Installation, Instructions |
|
- | |||||
| 2 | W10743281 | Bracket, Mounting (stainless) |
|
- | |||||
| 3 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 4 | W10751485 | Cooktop (black) (Replaces: W10536318) |
|
$ 854.86 | |||||
| 5 | W11672688 | Element (left Front And Left Rear) (Replaces: W10636723) |
|
Immediately | $ 149.26 | ||||
| 6 | WPW10410580 | Hotplate (right Rear) (Replaces: W10410580) |
|
$ 219.30 | |||||
| 7 | WPW10410578 | Element (right Front) (Replaces: W10410578) |
|
$ 277.41 | |||||
| 8 | W11120573 | Assembly, Display (Replaces: W10759324) |
|
Immediately | $ 438.96 | ||||
| 9 | W10557780 | Bracket , Control |
|
$ 31.44 | |||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 26.33 | |||||
| 11 | W11502257 | Bracket, Anti-tip (Replaces: W10606241) |
|
Immediately | $ 20.73 | ||||
| 12 | W10162253 | Brace, Corner (left) |
|
$ 63.54 | |||||
| 13 | W10289169 | Support, Cooktop (right) |
|
$ 25.76 | |||||
| 14 | W11170796 | Vent, Trim Top (stainless) (Replaces: W10636529) |
|
Immediately | $ 121.73 | ||||
| 15 | W10557751 | Endcap (stainless (left)) |
|
$ 144.73 | |||||
| 16 | W11043339 | Console (stainless) (Replaces: W10901072) |
|
$ 703.48 | |||||
| 17 | W10558372 | Bracket, Control |
|
$ 21.51 | |||||
| 18 | W11296051 | Control, Electronic (maxwell) (Replaces: W11254198) |
|
$ 440.63 | |||||
| 19 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 12.65 | ||||
| 20 | W11677629 | User, Interface (Replaces: W10808072) |
|
Immediately | $ 476.39 | ||||
| 21 | W10598048 | Bracket, Console (center) |
|
$ 22.05 | |||||
| 22 | W11104127 | Bumper (Replaces: W10664705) |
|
Immediately | $ 18.83 | ||||
| 23 | W10752321 | Shield, Keypad |
|
- | |||||
| 24 | W10802441 | Gasket, Console/ Cooktop (Replaces: W10612719) |
|
Immediately | $ 20.46 | ||||
| 12A | W10162252 | Brace, Corner (right) |
|
$ 67.37 | |||||
| 13A | W10289170 | Support, Cooktop (left) |
|
$ 25.76 | |||||
| 15A | W10557754 | Endcap (stainless (right)) |
|
$ 144.73 | |||||
| 1A | W10896673 | Use And Care Guide |
|
- | |||||
| 1B | W10844271 | Sheet, Tech |
|
- | |||||
| 1C | W10400064 | Guide, Quick Start (english) |
|
- | |||||
| 1D | W10400065 | Guide, Quick Start (french) |
|
- | |||||
| 1E | W10902659 | Wiring Diagram |
|
- | |||||
| NI | W11226775 | Harness, Bake Drawer (Replaces: W11172530) |
|
$ 204.52 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11171883 | Harness, Main |
|
$ 223.90 | |||||
| NI | W11226772 | Harness, Display (Replaces: W11172426) |
|
Immediately | $ 203.09 | ||||
| NI | W11025616 | Harness, Keypad (Replaces: W10575120) |
|
Immediately | $ 48.02 |
