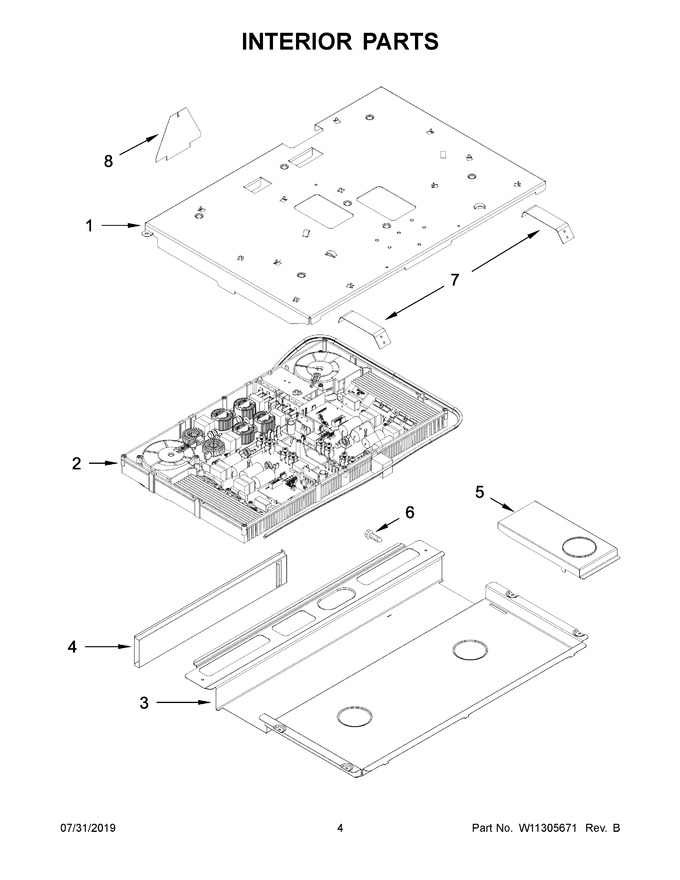

03 - Interior Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11727219 | Pan, Induction (upper) (Replaces: W10854047) |
|
- | |||||
| 2 | W10873520 | Assembly, Induction Module |
|
$ 483.37 | |||||
| 3 | W10536319 | Pan, Induction (lower) |
|
- | |||||
| 4 | W10719194 | Assembly, Induction Side Duct |
|
- | |||||
| 5 | W10606133 | Duct, Recirculation Plate |
|
$ 96.20 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | W10854045 | Spring (cantilever) |
|
- | |||||
| 8 | W10884792 | Insulation, Shield |
|
- |
