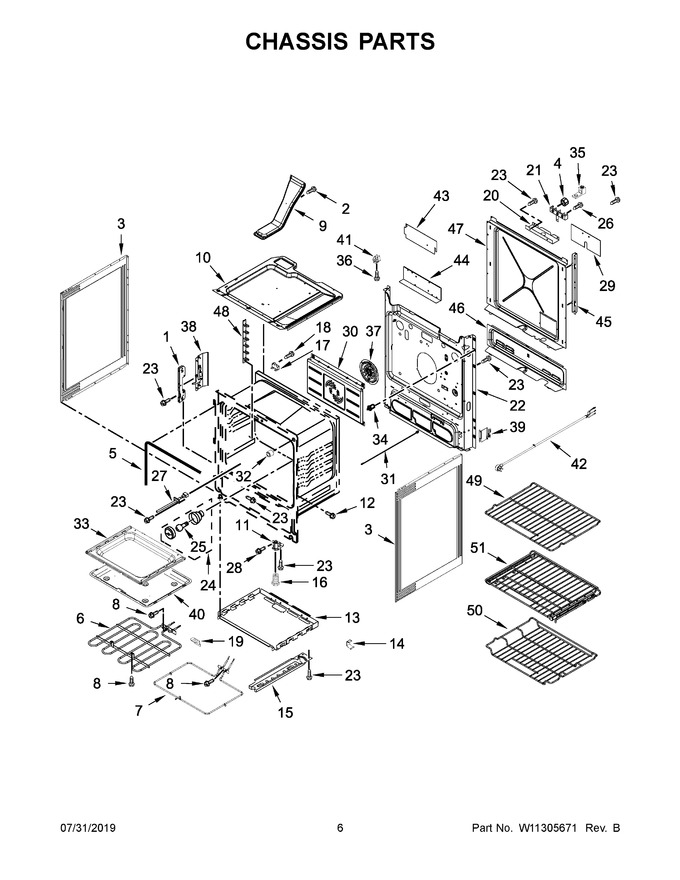

04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10634238 | Hinge, Receiver |
|
$ 66.22 | |||||
| 2 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 148.35 | ||||
| 4 | WP3400029 | Nut (Replaces: 3400029) |
|
Immediately | $ 6.98 | ||||
| 5 | W11562931 | Gasket, Door (Replaces: W10162385) |
|
Immediately | $ 78.98 | ||||
| 6 | W11238400 | Element, Broil (Replaces: W10544952) |
|
Immediately | $ 106.36 | ||||
| 7 | W10779716 | Element, Bake (Replaces: W10774342) |
|
Immediately | $ 55.31 | ||||
| 8 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 12.62 | ||||
| 9 | W11122085 | Assembly, Flue |
|
$ 101.47 | |||||
| 10 | W10289168 | Box, Burner Si |
|
$ 175.63 | |||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 6.98 | |||||
| 13 | W10541959 | Shield, Bake |
|
Immediately | $ 152.08 | ||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 41.50 | ||||
| 15 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 53.71 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.07 | ||||
| 17 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 18 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 19 | W10035900 | Support, Oven Bottom |
|
$ 12.31 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP8203546 | Block, Terminal (Replaces: W10246624) |
|
Immediately | $ 27.12 | ||||
| 22 | N/P | Back, Main (not Serviced) |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Light (Replaces: 7407P103-60) |
|
Immediately | $ 16.80 | ||||
| 26 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 27 | W10833885 | Sensor (Replaces: W10586204) |
|
Immediately | $ 126.64 | ||||
| 28 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 29 | W10655441 | Shield, Power Cord |
|
Immediately | $ 123.74 | ||||
| 30 | W10554262 | Baffle, Full Convection |
|
$ 242.78 | |||||
| 31 | W11370463 | Rod, Door Switch (Replaces: W10273192) |
|
Immediately | $ 57.32 | ||||
| 32 | W10877054 | Spacer, Door (Replaces: 9758701) |
|
Immediately | $ 48.05 | ||||
| 33 | W10777210 | Bottom, Oven (Replaces: W10774446) |
|
Immediately | $ 147.80 | ||||
| 34 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 130.00 | ||||
| 35 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 7.61 | |||||
| 36 | W10516115 | Screw |
|
$ 12.45 | |||||
| 37 | W11414552 | Assembly, Convection (Replaces: W10874472) |
|
Immediately | $ 185.08 | ||||
| 38 | W10605411 | Receiver, Slow Close Hinge |
|
$ 262.04 | |||||
| 39 | W10273002 | Bracket, Oven Support |
|
$ 65.43 | |||||
| 40 | W11379357 | Pan, Bake (Replaces: W10346147) |
|
Immediately | $ 71.02 | ||||
| 41 | W11769891 | Clip-panel, Ratcheting (Replaces: W10866583) |
|
$ 9.11 | |||||
| 42 | W11226497 | Cord, Power (Replaces: W10624592) |
|
Immediately | $ 65.69 | ||||
| 43 | W11117035 | Shield, Wire |
|
$ 75.56 | |||||
| 44 | W10162260 | Shield, Heat |
|
$ 77.38 | |||||
| 45 | W10162241 | Channel, Rear |
|
$ 32.19 | |||||
| 46 | W10162248 | Cover, Wire |
|
$ 127.02 | |||||
| 47 | W11379354 | Cover, Back (Replaces: W10289172) |
|
Immediately | $ 66.68 | ||||
| 48 | W10603482 | Rack, Ladder |
|
$ 383.36 | |||||
| 49 | W11699908 | Rack, Heavy Duty (Replaces: W10554005) |
|
$ 104.84 | |||||
| 50 | W11256463 | Rack, Maximum Capacity (Replaces: W10554006) |
|
Immediately | $ 119.25 | ||||
| 51 | W11225131 | Rack, Sliding (Replaces: W10911366) |
|
Immediately | $ 296.91 | ||||
| 15A | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 53.71 | |||||
| NI | W11025151 | Insulation, Door (Replaces: W10766562) |
|
$ 189.05 | |||||
| NI | W11688781 | Insulation, Heat Shield (Replaces: W10655442) |
|
$ 30.16 | |||||
| NI | W11175842 | Suppressor (Replaces: W10653092) |
|
Immediately | $ 94.54 | ||||
| NI | W10841090 | Clamp, Wire (Replaces: 7111P017-60) |
|
- | |||||
| NI | WP7103P027-60 | Nut (Replaces: 7103P027-60) |
|
Immediately | $ 6.47 | ||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 76.28 | |||||
| NI | W10655489 | Insulation, Wrapper |
|
$ 164.66 | |||||
| NI | W11688730 | Insulation, Bottom (Replaces: W10575374) |
|
Immediately | $ 68.55 | ||||
| NI | 4820F015-59 | Insulation, Strap |
|
$ 8.39 | |||||
| NI | W11688815 | Insulation, Main Back (Replaces: W10655490) |
|
$ 68.52 |
