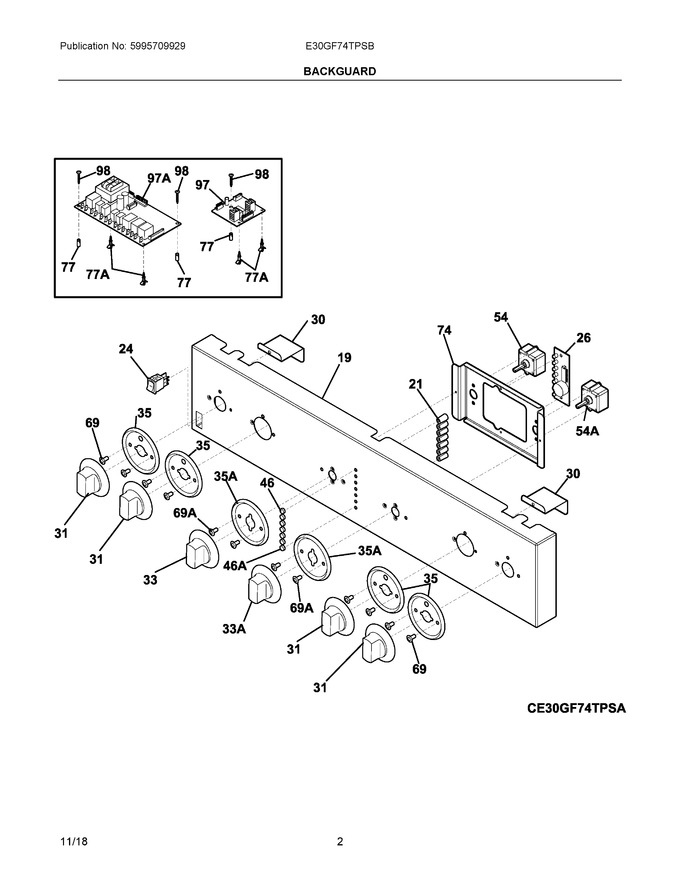

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner


04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	807687201		Panel, Mainfold, Stainless				$ 570.64
21	318389500		Retainer, Lens				$ 36.14
24	5308015487		Switch, Oven Light, Rocker				$ 61.43
26	5304452799		Board, Indicator Light, (2), Led				$ 333.46
30	318377000		Support, Control Panel, (2)		Appelez-nous	-
31	318242275		Knob, Top Valve, Stainless			Immediately	$ 99.18
33	318242230		Knob, Oven Selector, Stainless				$ 129.68
35	318251915		Skirt, Top Valve		Appelez-nous	-
46	318044501		Lens, Indicator Light, Blue, (5)				$ 7.09
54	5304452797		Control, Oven Selector			Immediately	$ 381.46
74	318383901		Bracket, Controls				$ 68.75
77	318293702		Spacer, Control				$ 16.22
97	316519205		Board, Relay, Convection, Triac				$ 256.95
98	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
33A	318242276		Knob, Oven Thermostat, Stainless				$ 83.42
35A	318251912		Skirt, Oven Knob				$ 75.08
46A	318228310		Lens, Indicator Light, (2)			Immediately	$ 22.91
54A	5304452798		Control, Oven Temp.			Immediately	$ 376.15
77A	316114100		Spacer				$ 60.96
97A	316455715		Board, Power, Relay		Appelez-nous	-
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	5304515239		Harness, Wiring, Selec/temp, Display-control		Appelez-nous	-
NI	5304515240		Harness, Wiring, P8/p9, Display-control		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50

    View Diagram in Separate Window       Print Part List
