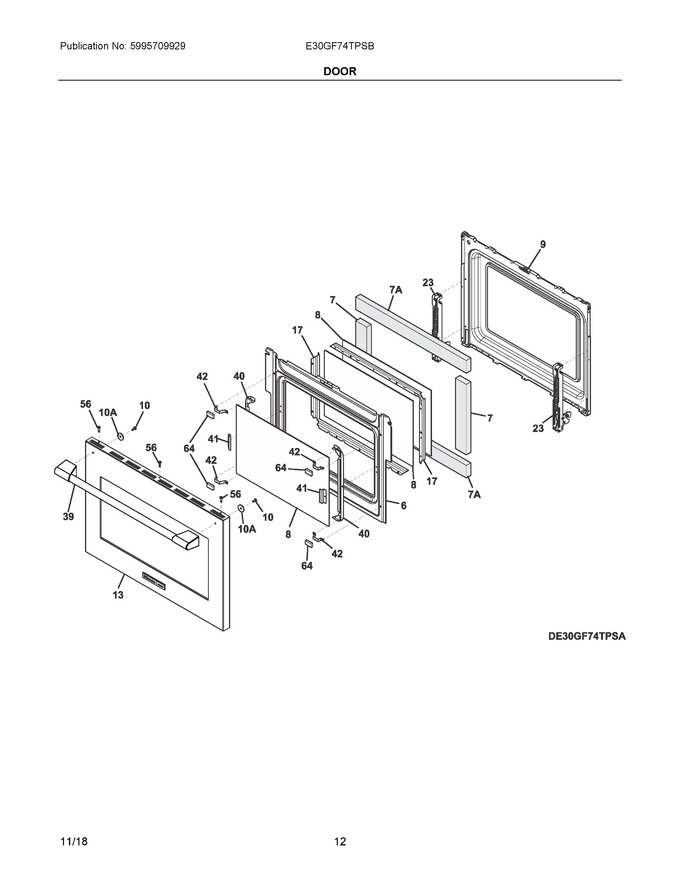

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139006905		Baffle, Door				$ 121.34
7	318372017		Insulation, Door				$ 16.30
8	5304503232		Glass, Oven Door, Heat Barrier   (Replaces: 316117500)				$ 116.95
9	139000411		Liner, Oven Door   (Replaces: 139000409)				$ 152.43
10	5303310510		Screw, 10-24 X 0.625				$ 14.18
13	807722601		Door Assembly, Outer, Glass/steel, Black/stinless, W/badge				$ 617.32
17	318264733		Spacer, Glass, (2)				$ 72.05
23	316575949		Hinge, Oven Door, Brown				$ 34.02
39	808992401		Handle, Door, Stainless				$ 293.37
40	318242702		Bracket, Glass Holder, Door, (2)				$ 19.72
41	318370602		Bracket, Glass Panel, (2)				$ 13.65
42	318382302		Bracket, Glass Retainer, (4)				$ 50.81
56	5303311306		Screw, 8-18 X 0.375		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
10A	5304498487		Washer, Handle Screw		Appelez-nous	-
7A	318372016		Insulation, Door				$ 17.72
NI	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
NI	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NI	316483102		Label, Anti-tip				$ 3.56
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
