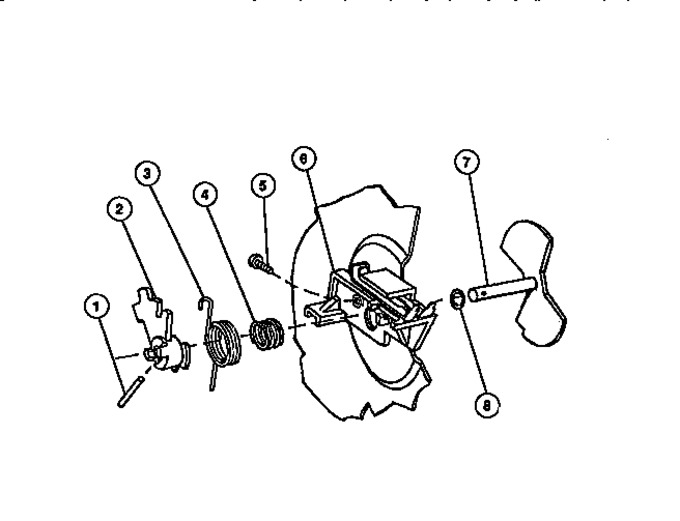

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5300808827 | Spiral Pin |
|
- | |||||
| 2 | 154180301 | Cam (Replaces: 5300806566) |
|
$ 32.84 | |||||
| 3 | 5300805227 | Cam Spring |
|
$ 32.50 | |||||
| 4 | 5300806567 | Cam Compression Spring |
|
$ 38.98 | |||||
| 5 | 5300809029 | Screw-8 A X 5/8`` |
|
- | |||||
| 6 | 5300809774 | Bi-metal Assy |
|
- | |||||
| 7 | 5303283676 | Dispenser Lid |
|
- | |||||
| 8 | 5300806647 | O, Ring |
|
$ 36.25 |
