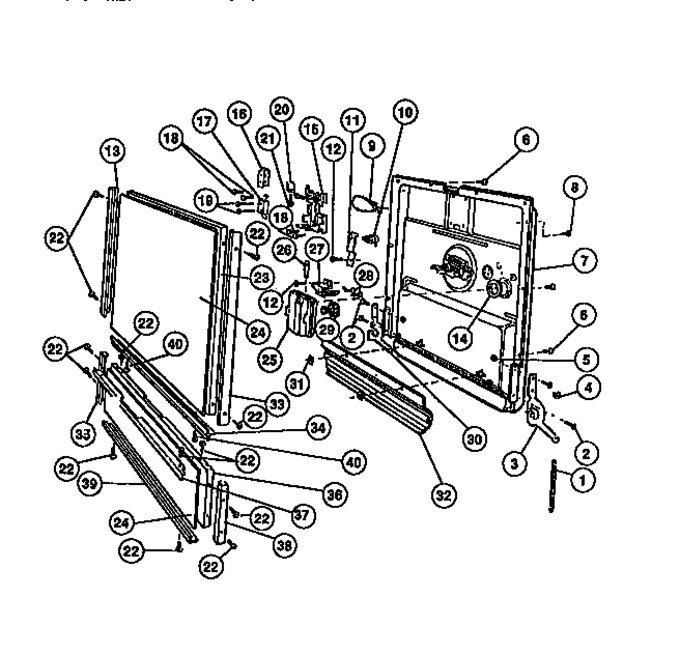

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809703		Door Spring - Includes 4 (2)				$ 39.04
2	5300809978		Screw-10-24 X 5/8``		Appelez-nous	-
3	5303270031		Arm Assy Rh				$ 79.75
4	5300805884		Spring Pad (2)		Appelez-nous	-
5	5300809979		Nut (4)		Appelez-nous	-
6	5300809055		Screw-8 X 7/16`` (4)				$ 1.21
7	5300809931		Door Assy		Appelez-nous	-
8	5300808749		Screw-8 X 5/8`` (2)		Appelez-nous	-
9	5300809075		Wire Tie		Appelez-nous	-
10	5300809159		Thermostat		Appelez-nous	-
11	5300809097		Thermostat Retainer		Appelez-nous	-
12	154419403		Screw 8 X 3/8``   (Replaces: 5300808658)				$ 13.10
13	5300809911		Door Panel Trim-lh		Appelez-nous	-
14	5300805631		Dispenser Grommet				$ 6.29
15	5303270032		Latch Assy		Appelez-nous	-
16	5300809933		Switch Cover		Appelez-nous	-
17	5300809934		Switch				$ 129.57
18	5300809981		Screw-8a X 5/8`` (4)		Appelez-nous	-
19	5300808618		Screw-6-32 X 1`` (2)		Appelez-nous	-
20	5300808712		Latch Knob				$ 31.71
21	5300808715		Screw, 8, 32 X 5/16``		Appelez-nous	-
22	5300809696		Screw, 8 X 3/8`` (14)		Appelez-nous	-
23	5300807262		Door Panel-white		Appelez-nous	-
24	5300808908		Door & Access Panel Insert-almond/black		Appelez-nous	-
25	5300806753		Body Assy.				$ 69.93
26	5300809898		Plunger				$ 36.49
27	5300809782		Bi-metal Assy				$ 47.51
28	5300809501		Screw, 8 X 1/2``		Appelez-nous	-
29	5300809916		Fill Plug		Appelez-nous	-
30	5303270031		Arm Assy, Lh				$ 79.75
31	5300809695		Speed Nut		Appelez-nous	-
32	5300809773		Baffle Seal		Appelez-nous	-
33	5300809912		Door Panel Trim-rh		Appelez-nous	-
34	5300807347		Door Panel Trim-bottom		Appelez-nous	-
35	5300809915		Access Panel Trim-lh		Appelez-nous	-
36	5300809108		Access Panel-white		Appelez-nous	-
37	5300808346		Access Panel Trim-top		Appelez-nous	-
38	5300809914		Accesss Panel Trim, Rh		Appelez-nous	-
39	5300809994		Access Panel Trim-bottom		Appelez-nous	-
40	5300807501		Screw, 8a X 1/2`` (2)		Appelez-nous	-
