Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303943046 Lower Rack Assy Appelez-nous -
2 5304509753 Silverware Basket   (Replaces: 3351194) In-Stock Immediately $ 36.87

3 5303943045 Upper Rack Assy Appelez-nous -
4 5304535381 Wheel & Bracket Kit - Upper Rack (4)   (Replaces: 5300809974) In-Stock Immediately $ 10.05

5 5300809927 Slide Cap (4) In-Stock Immediately $ 3.69

6 5300809941 Rack Slide (2) Appelez-nous -
7 5304532229 Wheel & Bracket Assy, Lower Rack   (Replaces: 5300809640) In-Stock Immediately $ 12.75

8 5303351195 Handle-silverware Basket Appelez-nous -
9 3351196 Cover, Silverware Basket Appelez-nous -
10 5303282003 Shelf, Cup Appelez-nous -
11 5303282005 Bracket-cup Shelf (2) Appelez-nous -
12 5303282012 Fence Appelez-nous -
13 5300809582 Bracket, Fence (2) Appelez-nous -
14 5303282008 Utensil Basket Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

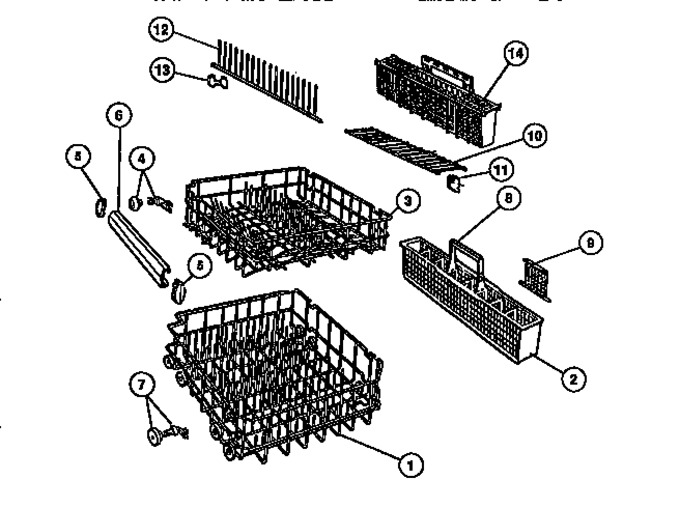

Diagram for DW5900PW1
