02 - Console And Control Parts
03 - Door Parts
04 - Door Parts
05 - Inner Tub Parts
06 - Tub Parts
07 - Racks And Trays
08 - Motor Pump, Power Dry And Parts
SELECT A DIAGRAM
New Model Search:

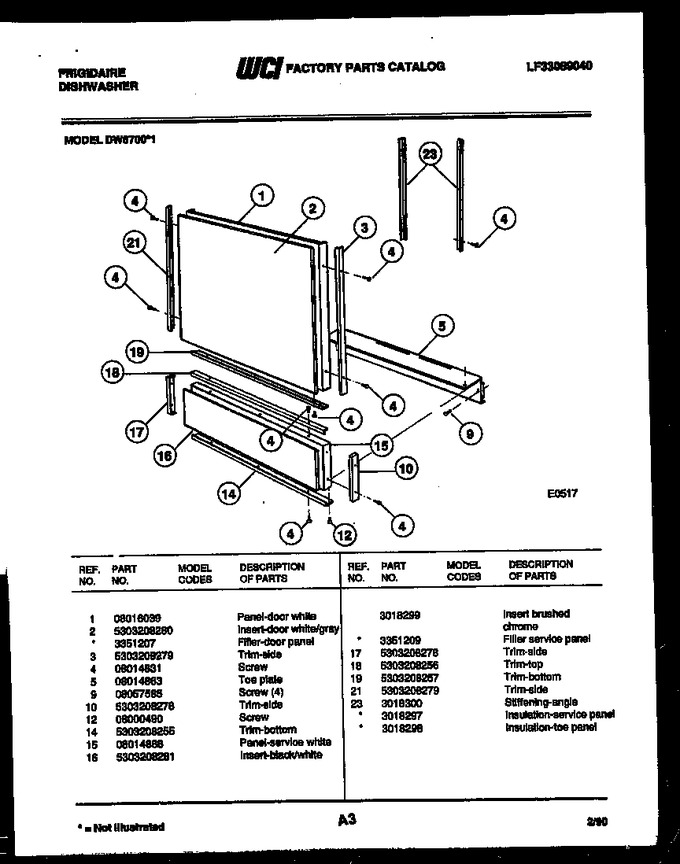

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016039 | Panel-door White |
|
- | |||||
| 2 | 5303208280 | Insert-door White/gray |
|
- | |||||
| 3 | 5303208279 | Trim-side |
|
- | |||||
| 4 | 08014831 | Screw |
|
- | |||||
| 5 | 08014863 | Toe Plate |
|
- | |||||
| 9 | 08057585 | Screw (4) |
|
- | |||||
| 10 | 5303208278 | Trim-side |
|
- | |||||
| 12 | 08000490 | Screw |
|
- | |||||
| 14 | 5303208255 | Trim-bottom |
|
- | |||||
| 15 | 08014868 | Panel-service White |
|
- | |||||
| 16 | 5303208281 | Insert-black/white |
|
- | |||||
| 17 | 5303208278 | Trim-side |
|
- | |||||
| 18 | 5303208256 | Trim-top |
|
- | |||||
| 19 | 5303208257 | Trim-bottom |
|
- | |||||
| 21 | 5303208279 | Trim-side |
|
- | |||||
| 23 | 3018300 | Stiffening-angle |
|
- | |||||
| *30068 | 3018298 | Insulation-toe Panel |
|
- | |||||
| *30068 | 3018297 | Insulation-service Panel |
|
- | |||||
| 16A | 3018299 | Insert Brushed Chrome |
|
- | |||||
| 16B | 3351209 | Filler Service Panel (non-illustrated) |
|
- | |||||
| 2A | 3351207 | Filler-door Panel (non-illustrated) |
|
- |
