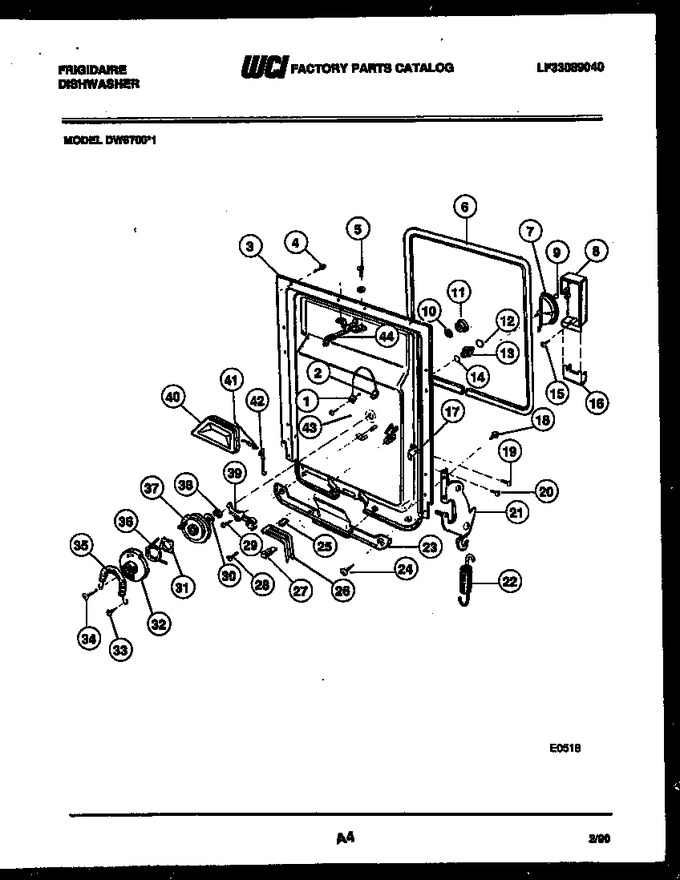

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3018291 | Clip-thermostat |
|
- | |||||
| 2 | 3018292 | Thermistor |
|
- | |||||
| 3 | 08016254 | Panel-door |
|
- | |||||
| 4 | 08014823 | Screw |
|
- | |||||
| 5 | 5303208277 | Screw |
|
- | |||||
| 6 | 08016252 | Gasket |
|
- | |||||
| 7 | 3351216 | Cup |
|
- | |||||
| 8 | 3351217 | Cover |
|
- | |||||
| 9 | 08057595 | O-ring |
|
- | |||||
| 10 | 08000662 | Nut |
|
- | |||||
| 11 | 08016740 | Cover |
|
- | |||||
| 12 | 08000575 | O-ring |
|
- | |||||
| 13 | 08000574 | Bearing |
|
- | |||||
| 14 | 08000573 | O-ring |
|
- | |||||
| 15 | 08000579 | Screw |
|
- | |||||
| 16 | 3351234 | Cup |
|
- | |||||
| 17 | 08014832 | Clip-ground |
|
- | |||||
| 18 | 08001115 | Screw |
|
- | |||||
| 19 | 08057594 | Screw |
|
- | |||||
| 20 | 08001115 | Screw |
|
- | |||||
| 21 | 08016034 | Hinge-door Rh |
|
- | |||||
| 22 | 08014850 | Spring |
|
- | |||||
| 23 | 08016253 | Retainer |
|
- | |||||
| 24 | 08014825 | Screw |
|
- | |||||
| 25 | 08014836 | Block |
|
- | |||||
| 26 | 08000586 | Bi Metal-actuator |
|
- | |||||
| 27 | 08014837 | Wedge |
|
- | |||||
| 28 | 08014826 | Screw |
|
- | |||||
| 29 | 08000579 | Screw |
|
- | |||||
| 30 | 08000581 | Spacer |
|
- | |||||
| 31 | 08000635 | Snubber |
|
- | |||||
| 32 | 08000583 | Wheel-clutch |
|
- | |||||
| 33 | 08057596 | Screw |
|
- | |||||
| 34 | 08000579 | Screw |
|
- | |||||
| 35 | 08000589 | Spring |
|
- | |||||
| 36 | 08000582 | Spring-clutch |
|
- | |||||
| 37 | 08000580 | Wheel-cup Stop |
|
- | |||||
| 38 | 08000578 | Nut |
|
- | |||||
| 39 | 08007032 | Trip Lever |
|
- | |||||
| 40 | 08000660 | Container |
|
- | |||||
| 41 | 08000659 | Shaft |
|
- | |||||
| 42 | 08000590 | Spring |
|
- | |||||
| 43 | 08000661 | Gasket |
|
- | |||||
| 44 | 5303208276 | Latch |
|
- | |||||
| *30071 | 3018295 | Wiring Harness-door |
|
- | |||||
| *30072 | 3018294 | Label-status Msg |
|
- | |||||
| *30072 | 3018293 | Label-adding Detergent |
|
- | |||||
| *30072 | 3351233 | Insulation-door Frame |
|
- | |||||
| 21A | 08016035 | Hinge-door Lh |
|
- |
