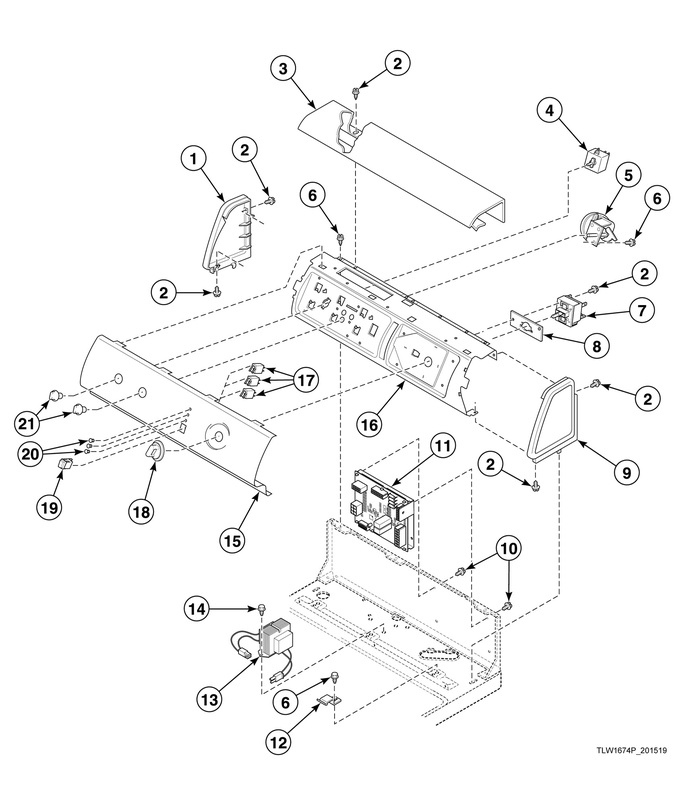

Control Panel, Control Support Panel And Controls


Drain Hose And Siphon Break Kit


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing Valve And bracket - All Models Except Aws48nw And Aws53nw


Front Panel, Base Assembly And Cabinet Kit


Lead-in Cord And Terminals


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals And Extractor Tool


Motor, Mounting Bracket, Belt, Pump And Idler Assembly


Outer Tub, Cover, Pressure Hose And Counterweight


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D504009WP		End Panel (comment: Left)			Immediately	$ 22.20
2	D501086		Screw			Immediately	$ 6.95
3	39905W		Top Cover				$ 48.89
4	35115		Temperature Switch				$ 30.67
5	201609P		Pressure Switch				$ 137.14
6	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.04
7	801240		Cycle Switch			Immediately	$ 57.03
8	801390		Cycle Switch Bracket		Appelez-nous	-
9	D504008WP		End Panel (comment: Right)				$ 19.23
10	D501524		Screw		Appelez-nous	-
11	202320P		Control Assembly		Appelez-nous	-
12	35358		Hold-down Clip				$ 6.95
13	201587P		Transformer				$ 45.64
14	D503661		Screw		Appelez-nous	-
15	202440W		Control Panel		Appelez-nous	-
16	38171		Control Support Panel				$ 46.87
17	801356		Indicator Light		Appelez-nous	-
18	803168P		Knob Assembly			Immediately	$ 9.68
19	801434W		Push-to-start Switch			Immediately	$ 22.66
20	801435		Indicator Light Lens				$ 6.95
21	803119P		Control Knob Assembly			Immediately	$ 11.21
