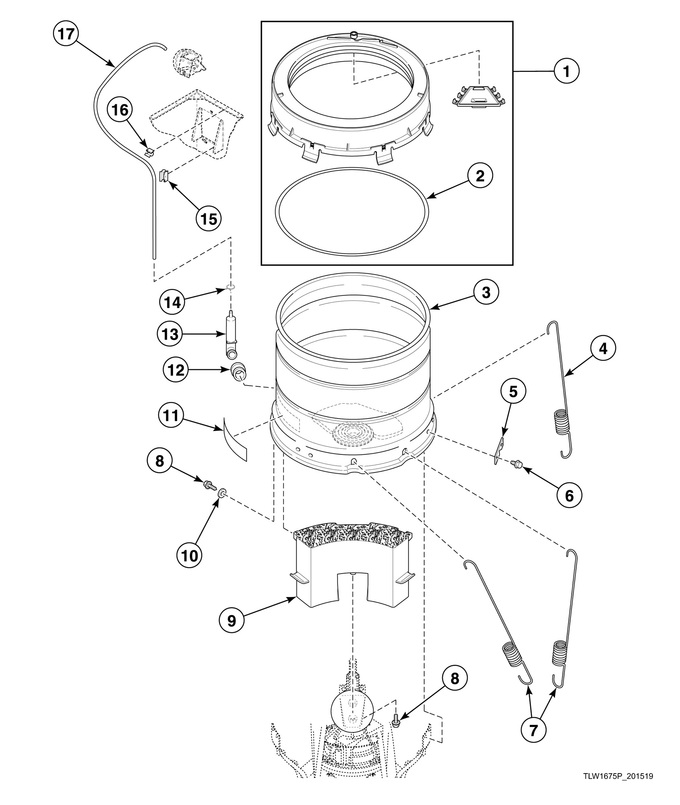

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	201430		Tub Cover And Gasket Assembly (comment: Includes Item 2)				$ 77.00
2	38359		Tub Cover Gasket				$ 12.08
3	204452P		Tub Assembly		Appelez-nous	-
4	201521		Leg Spring (comment: Use To Replace Two Rear Springs (closest To Counterweight))			Immediately	$ 14.46
5	27926		Leg Plate		Appelez-nous	-
6	35369		Screw			Immediately	$ 6.95
7	37575		Leg Spring			Immediately	$ 9.67
8	39566		Screw			Immediately	$ 6.95
9	205612		Counterweight Assembly   (Replaces: 38769)			Immediately	$ 36.36
10	39249		Washer				$ 6.95
11	D500049		Warning Label		Appelez-nous	-
12	29175		Grommet				$ 8.56
13	COMM PART		Pressure Bulb   (Replaces: 30907)		Appelez-nous	-
14	WP596669		Hose Clamp   (Replaces: 39282)			Immediately	$ 7.56
15	36985		Hose Clip		Appelez-nous	-
16	21036		Cable Clip				$ 62.49
17	202700		Tubing				$ 7.07

    View Diagram in Separate Window       Print Part List
