Agitator, Drive Bell, Hub And Lip Seal Kit And Washtub


Control Panel, Control Support Panel And Controls


Drain Hose And Siphon Break Kit


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing Valve And bracket - All Models Except Aws48nw And Aws53nw


Front Panel, Base Assembly And Cabinet Kit


Lead-in Cord And Terminals


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals And Extractor Tool


Motor, Mounting Bracket, Belt, Pump And Idler Assembly


Outer Tub, Cover, Pressure Hose And Counterweight


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

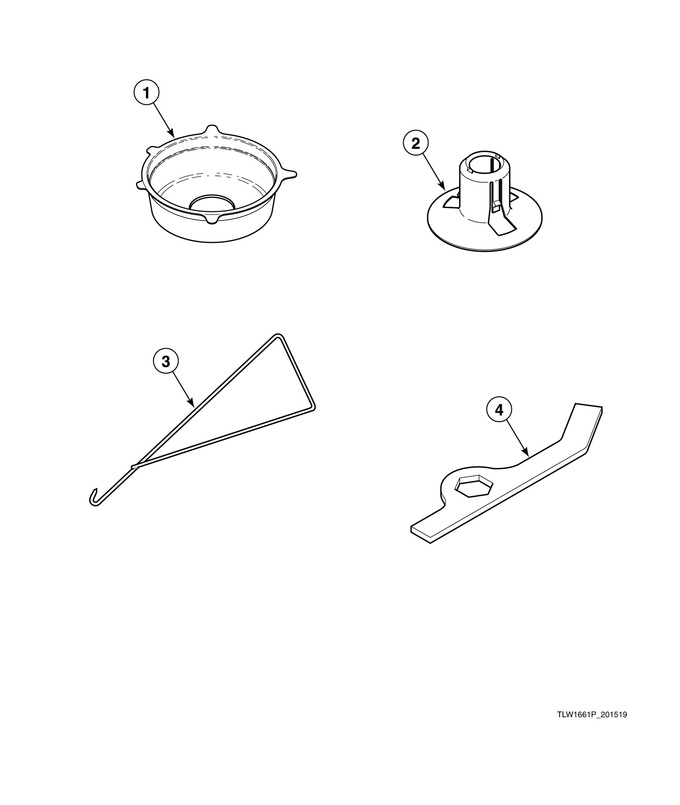

1	200553		Shipping Brace (comment: Install Whenever Moving Washer; Remove Before Use)				$ 37.26
2	38149		Shipping Plug (comment: Install Before Moving Washer To Prevent Tub From Damaging Cabinet)				$ 4.00
3	321P4		Spring Hook Tool (comment: For Removal Of Module Springs From Outer Tub)			Immediately	$ 17.34
4	306P4		Hex Wrench Tool (comment: For Removal Of Locknut From Washtub Hub)				$ 33.30
NA	725P3		Tool Kit (comment: Includes Items 3, 4, Drive Bell Seal Tool, Tub Cover Removal Tool, Agitator Hook And Torx Bit)				$ 143.88
