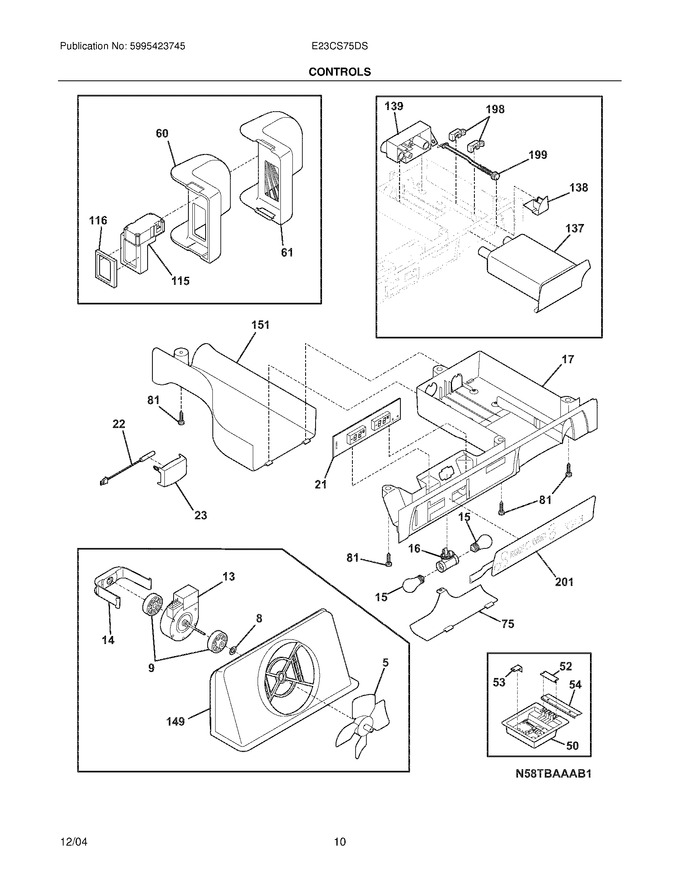

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241518301 | Bushing,motor Mounting |
|
$ 66.63 | |||||
| 13 | 809069220 | Motor,evaporator Fan (Replaces: 241509401) |
|
Immediately | $ 154.14 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 15 | 5304517886 | Light Bulb (Replaces: 241552801) |
|
Immediately | $ 73.06 | ||||
| 16 | 241622802 | Socket-light (Replaces: 241507803) |
|
$ 65.93 | |||||
| 17 | 241516201 | Box-control,front |
|
$ 82.93 | |||||
| 21 | 241528204 | Control-temperature (Replaces: 241528201) |
|
$ 352.04 | |||||
| 22 | 240597220 | Sensor (Replaces: 240597201) |
|
Immediately | $ 5.16 | ||||
| 23 | 241512901 | Cover-sensor |
|
$ 83.49 | |||||
| 50 | 241511101 | Board-main Power |
|
$ 466.33 | |||||
| 52 | 241532501 | Clip-harness |
|
- | |||||
| 53 | 241509101 | Bracket |
|
- | |||||
| 54 | 241532401 | Channel |
|
$ 30.47 | |||||
| 60 | 241510401 | Diffuser-air,top |
|
- | |||||
| 61 | 241511201 | Cover |
|
- | |||||
| 75 | 241517801 | Shield-light |
|
- | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 115 | 5303918899 | Damper,motorized (Replaces: 241518501) |
|
Immediately | $ 73.24 | ||||
| 116 | 241518601 | Seal-damper,foam |
|
$ 9.22 | |||||
| 138 | 240397301 | Button-filter Release |
|
$ 91.76 | |||||
| 139 | 240396002 | Base-water Filter (Replaces: 240396001) |
|
Immediately | $ 119.66 | ||||
| 149 | 242204504 | Shroud-evap Fan Mtg (Replaces: 241517601) |
|
$ 38.68 | |||||
| 151 | 241505001 | Cover-water Tube |
|
$ 84.68 | |||||
| 198 | 240397401 | Retainer |
|
$ 59.54 | |||||
| 199 | 240397501 | Rod |
|
$ 55.57 | |||||
| 199 | 240398401 | Spring-filter Release Rod |
|
$ 59.16 | |||||
| 201 | 241544901 | Switch-membrane |
|
$ 342.20 | |||||
| F137 | EWF2CBPA | Filter,water ,carbon Cassette ,front ,with O`rings (Replaces: 240396405) |
|
Immediately | $ 115.61 | ||||
| F137 | 242227702 | Bypass,water Filter ,optional Part (Replaces: 240396701) |
|
Immediately | $ 73.16 | ||||
| F139 | 240527001 | O-ring,wtr Filter Base (Replaces: 240526901) |
|
$ 10.62 | |||||
| F149 | 241528301 | Seal,foam ,evap Fan Assy |
|
- | |||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 241524802 | Seal,housing |
|
- | |||||
| NI | 241524801 | Seal-mother Board Housing |
|
- | |||||
| NI | 241510802 | Harness-wiring (Replaces: 241510801) |
|
$ 41.81 | |||||
| NI | 241510501 | Seal-diffuser |
|
- | |||||
| NI | 3205266 | Edge Protector, Wiring Harness |
|
$ 80.09 | |||||
| NI | 241521801 | Shield-light,frzr |
|
- |
