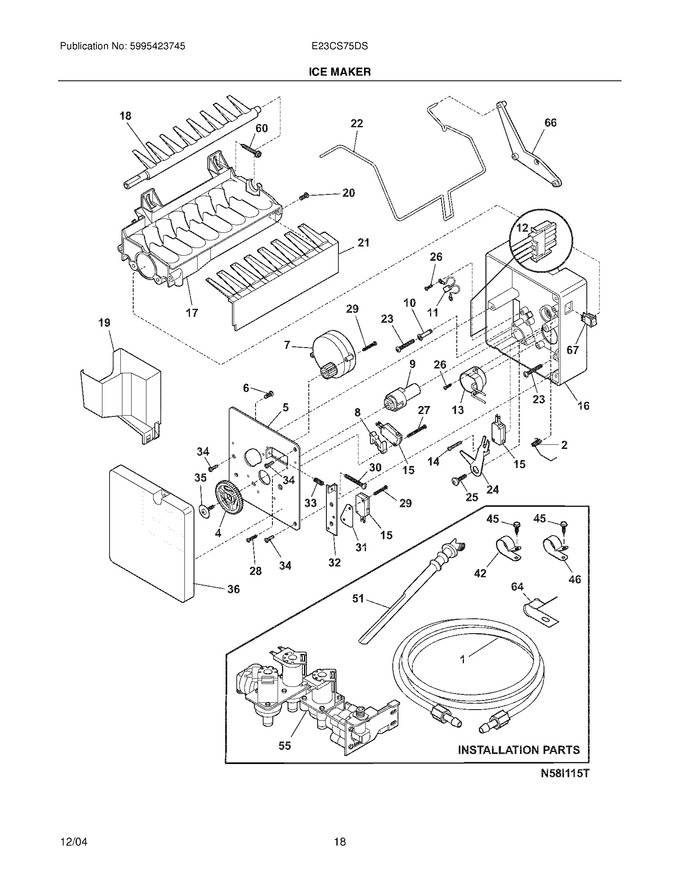

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
2	5304436616		Spring,torsion		Appelez-nous	-
4	3206301		Gear		Appelez-nous	-
5	5304436604		Plate-mounting		Appelez-nous	-
6	3206305		Screw-ground Wire,8-32 X 0.250		Appelez-nous	-
8	3206312		Spacer-hold Switch		Appelez-nous	-
9	5304436610		Detent				$ 20.00
10	3206315		Clamp				$ 35.33
12	5304436614		Harness-wiring				$ 86.89
13	5304436613		Thermostat,ice Maker		Appelez-nous	-
14	5304420652		Screw,4 X 0.750 ,switch Mtg.		Appelez-nous	-
16	5304436609		Housing,control		Appelez-nous	-
18	5304436607		Ejector-ice		Appelez-nous	-
19	5304436606		Cup-water Inlet				$ 72.40
20	5304408581		Screw,8-32 X 0.375		Appelez-nous	-
21	5304473031		Ice Stripper   (Replaces: 5304436608)				$ 29.58
22	5304436602		Shut-off Arm		Appelez-nous	-
23	5304408582		Screw,8-32 X 0.875 ,mold-to-support ,(3)		Appelez-nous	-
24	5304456675		Lever-arm   (Replaces: 3206335)				$ 66.63
25	240555002		Screw,hex Washer Head ,8-32t X 0.375   (Replaces: 5304404362)			Immediately	$ 13.46
26	5304420654		Screw-thermo/sprt`4-24 X 0.375 `(4)		Appelez-nous	-
27	3206338		Screw,4-40 X 1.000 ,hold Switch Mtg ,(2)		Appelez-nous	-
28	3206339		Screw-timing Stop`4-40 X 0.375		Appelez-nous	-
29	3206323		Screw,4-24 X 0.750 ,(6)		Appelez-nous	-
30	3206341		Screw-timing Adj,8-32 X 1.000		Appelez-nous	-
31	3206342		Insulator		Appelez-nous	-
32	3206343		Plate-valve Switch		Appelez-nous	-
33	5304436615		Spring-thermostat		Appelez-nous	-
34	5304420655		Screw,plazscrew ,8-10 ,(3)		Appelez-nous	-
35	5304408585		Screw		Appelez-nous	-
36	5303918344		Cover-ice Maker   (Replaces: 5304436605)			Immediately	$ 178.39
42	5303001199		Clamp				$ 65.92
45	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
46	5303001193		Clamp,.50 Id ,steel ,water Tube				$ 16.30
51	241796406		Tube-water Fill,extension   (Replaces: 241523502)				$ 19.85
60	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
64	5304455846		Clamp,0.31 Id ,steel ,copper Wtr Line   (Replaces: 5303001549)				$ 10.63
66	5304436611		Bracket-ice Maker		Appelez-nous	-
67	5304465210		Switch,on/off   (Replaces: 5304436612)				$ 225.39
F11	5304436618		Thermal Cutoff,ice Maker ,complete Assy				$ 116.03
F15	5304456667		Switch,(3)   (Replaces: 3206324)				$ 92.53
F17	5303918344		Mold-ice Maker,with Heater   (Replaces: 5304436617)			Immediately	$ 178.39
F55	242252702		Valve-water,triple Solenoid   (Replaces: 240531101)			Immediately	$ 132.71
F7	5304469407		Motor-ice Maker   (Replaces: 5304436619)				$ 158.38
NI	5303918344		Ice Maker,radius Cube ,115 V ,no Instl Parts   (Replaces: 241627701)			Immediately	$ 178.39
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	218515402		Clip,(2) ,tube Mtg.		Appelez-nous	-
NI	218976912		Tube-water Inlet,valve To Door				$ 63.65
NI	218976903		Tube-water Inlet,inlet Valve ,to Filter				$ 70.16
NI	218709100		Screw,hex Head ,10-32 X 0.500		Appelez-nous	-
NI	240363602		Screw-shoulder   (Replaces: 240363601)				$ 13.65
NI	240542901		Cap-water Valve				$ 18.95
NI	218888001		Adapter-water Supply,nut & Sleeve ,compression Ftg				$ 63.42
NI	241583301		Deflector-air,ice Maker				$ 46.78
NI	240352601		Wiring Harness,internal ,with Plug		Appelez-nous	-
