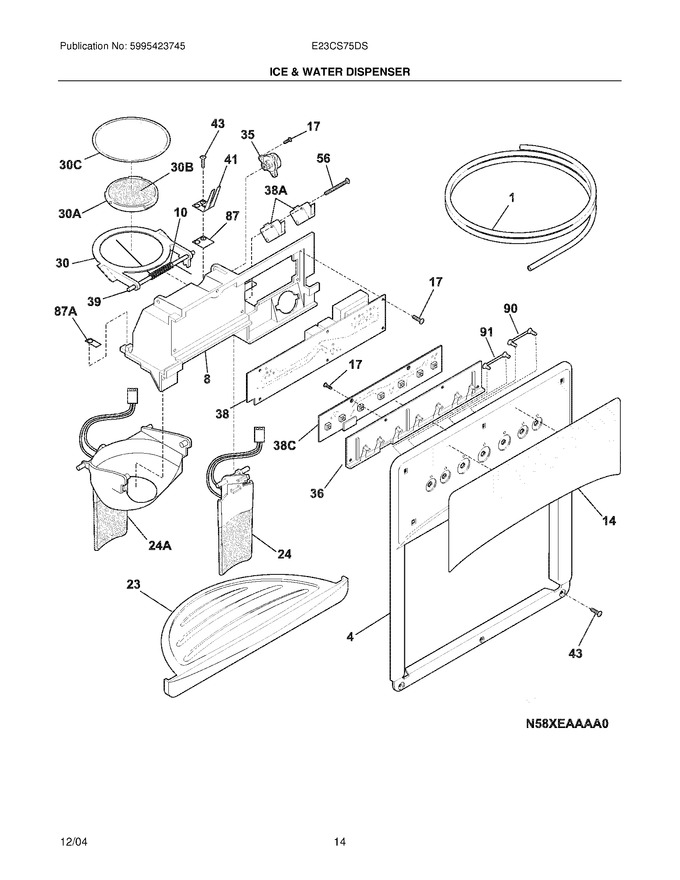

15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976409 | Tube-water-door |
|
Immediately | $ 60.25 | ||||
| 4 | 241533201 | Cover-module,stainless |
|
- | |||||
| 8 | 5304424549 | Module-dispenser |
|
- | |||||
| 10 | 241688901 | Spring-torsion (Replaces: 5304426649) |
|
Immediately | $ 21.27 | ||||
| 17 | 241679801 | Screw (Replaces: 5304421619) |
|
$ 14.18 | |||||
| 23 | 241531101 | Drip Tray,stainless |
|
- | |||||
| 24 | 241685703 | Actuator-water,black (Replaces: 5304433613) |
|
Immediately | $ 153.33 | ||||
| 30 | 241688401 | Door Assy-ice Chute (Replaces: 5304421628) |
|
$ 49.62 | |||||
| 35 | 241689301 | Damper-rotary (Replaces: 5304421620) |
|
$ 70.52 | |||||
| 36 | 241533501 | Button Module,stainless |
|
$ 304.77 | |||||
| 38 | 241527601 | Board-power |
|
$ 427.72 | |||||
| 39 | 241688801 | Pin-hinge (Replaces: 5304421627) |
|
$ 43.24 | |||||
| 43 | 215296300 | Screw,plask H/l ,no.6 X 3/8 |
|
- | |||||
| 56 | 241689201 | Screw-micro Switch,pan Head (Replaces: 5304421830) |
|
$ 13.46 | |||||
| 74 | 5304436349 | Screw |
|
- | |||||
| 87 | 241688302 | Bearing Plate (Replaces: 5304421622) |
|
$ 19.85 | |||||
| 94 | 241533301 | Support,control Board |
|
$ 42.20 | |||||
| 100 | 241530401 | Liner,dispen Housing ,stainless |
|
- | |||||
| 23A | 241531601 | Drip Tray Insert |
|
$ 88.10 | |||||
| 24A | 241682303 | Actuator-ice,black (Replaces: 5304433610) |
|
$ 223.25 | |||||
| 30A | 241688501 | Door Center (Replaces: 5304421624) |
|
$ 52.97 | |||||
| 30B | 241688601 | Insulation-door (Replaces: 5304421625) |
|
$ 63.17 | |||||
| 30C | 241688701 | Door Seal (Replaces: 5304421629) |
|
$ 40.46 | |||||
| 38A | 241689106 | Switch-micro,single Pole ,double Throw (Replaces: 5304421617) |
|
Immediately | $ 8.60 | ||||
| 38C | 5304430811 | Harness-ribbon Cable |
|
- | |||||
| 38C | 241527501 | Board-control |
|
- | |||||
| 87A | 241688301 | Bearing Plate (Replaces: 5304421621) |
|
$ 19.85 | |||||
| NI | 218976903 | Tube-water Inlet,inlet Valve ,to Filter |
|
$ 70.16 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 | |||||
| NI | 241510902 | Harness-dispenser |
|
$ 23.40 | |||||
| NI | 218976912 | Tube-water Inlet,valve To Door |
|
$ 63.65 | |||||
| NI | 5304426535 | Insulator-electrical |
|
- | |||||
| NI | 240561701 | Seal-water Inlet,inlet Valve ,to Ice Maker |
|
Immediately | $ 20.56 | ||||
| NI | 241533401 | Seal,foam |
|
- |
