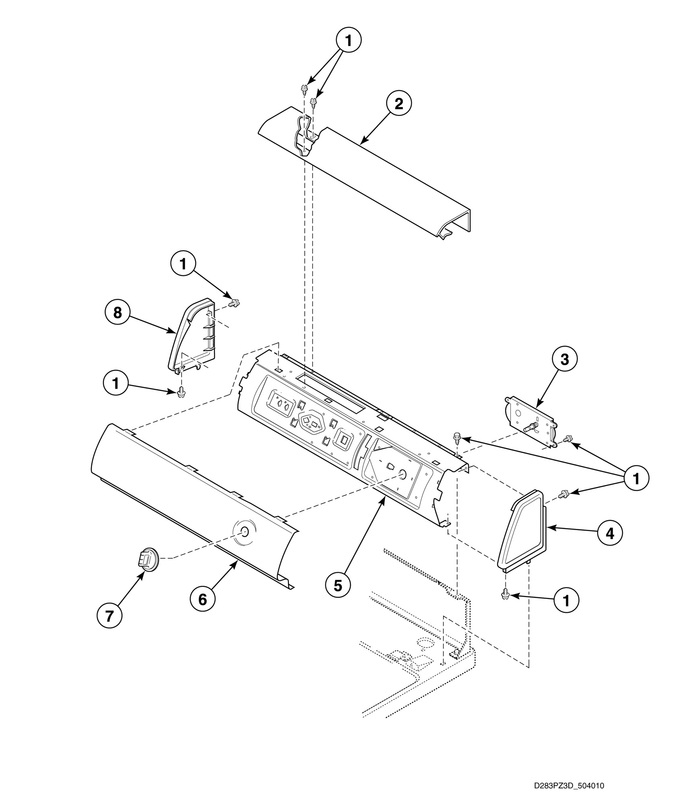

Graphic Panel, Control Hood And Controls - Models les10a* and lgs10a*


Heater Duct And Element Assembly


Lead-in Cord - Electric Models


Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D501086		Screw			Immediately	$ 6.95
2	D505808W		Top Cover (comment: White)				$ 91.43
2	D505808L		Top Cover (comment: Almond)		Appelez-nous	-
3	D505793P		Timer And Harness Kit		Appelez-nous	-
4	D504008L		End Panel (comment: Almond; Right)		Appelez-nous	-
4	D504008W		End Panel (comment: White; Right)		Appelez-nous	-
5	D503901		Control Support Panel		Appelez-nous	-
6	N/A		Graphic Panel		Appelez-nous	-
7	D512117W		Timer Knob Assembly (comment: White)			Immediately	$ 8.06
7	D510287L		Timer Knob Assembly (comment: Almond)		Appelez-nous	-
8	D504009L		End Panel (comment: Almond; Left)		Appelez-nous	-
8	D504009W		End Panel (comment: White; Left)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
