SELECT A DIAGRAM

Component Group 1


Access Panel, Front Panel And Seal


Cabinet, Exhaust Duct And Base


Cabinet Top And Control Hood Rear Panel

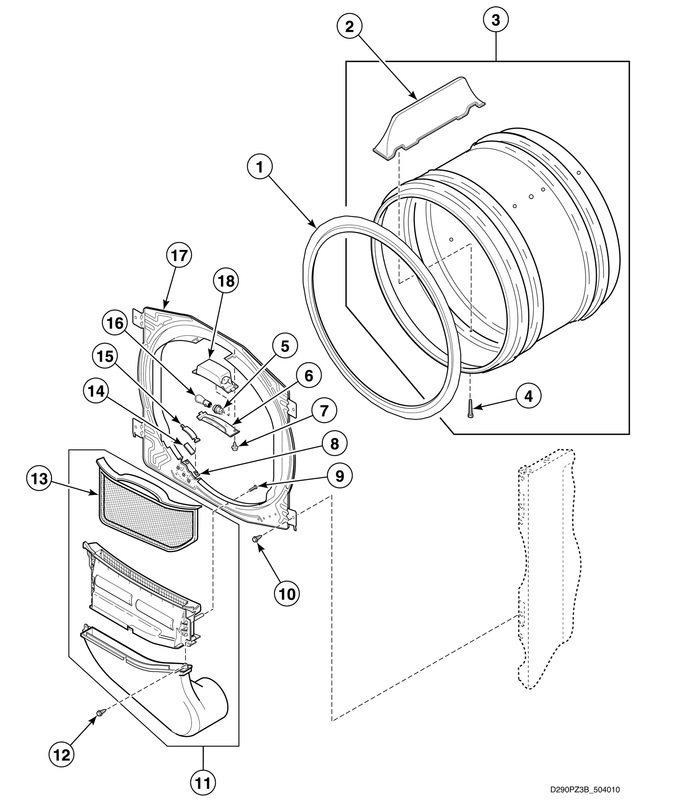

Front Bulkhead, Air Duct, Felt Seal And Cylinder


Graphic Panel, Control Hood And Controls - Models les10a* and lgs10a*


Heater Duct And Element Assembly


Lead-in Cord - Electric Models


Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510207P		Cylinder Seal Assembly			Immediately	$ 55.95
2	D503703		Cylinder Baffle		Appelez-nous	-
3	D510159W		Cylinder Assembly (comment: White; Includes Items 2 And 4)		Appelez-nous	-
4	62588		Screw				$ 6.95
5	D504452		Light Housing Assembly		Appelez-nous	-
6	D512106		Drum Light Lens				$ 9.97
7	D505870		Screw				$ 6.95
8	D510145		Cylinder Glide Bracket				$ 14.05
9	D500226		Screw				$ 3.88
10	D503661		Screw		Appelez-nous	-
11	750P3W		Air Duct And Door Liner Kit (comment: Includes Item 13)   (Replaces: 750P3)				$ 215.83
12	D501285		Screw				$ 2.76
13	D503627		Lint Filter		Appelez-nous	-
14	D510189		Felt Pad				$ 4.23
15	D513710		Cylinder Glide (comment: 1 Required Per Side)			Immediately	$ 10.81
16	60954		Drum Light Lamp				$ 24.20
17	D511033W		Front Bulkhead Assembly (comment: White)		Appelez-nous	-
18	N/A		Cylinder Light Housing		Appelez-nous	-
NA	D511637		Adhesive (comment: Cylinder Seal To Bulkhead)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
