SELECT A DIAGRAM

Component Group 1


Access Panel, Front Panel And Seal


Cabinet, Exhaust Duct And Base


Cabinet Top And Control Hood Rear Panel


Front Bulkhead, Air Duct, Felt Seal And Cylinder


Graphic Panel, Control Hood And Controls - Models les10a* and lgs10a*


Heater Duct And Element Assembly


Lead-in Cord - Electric Models


Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)

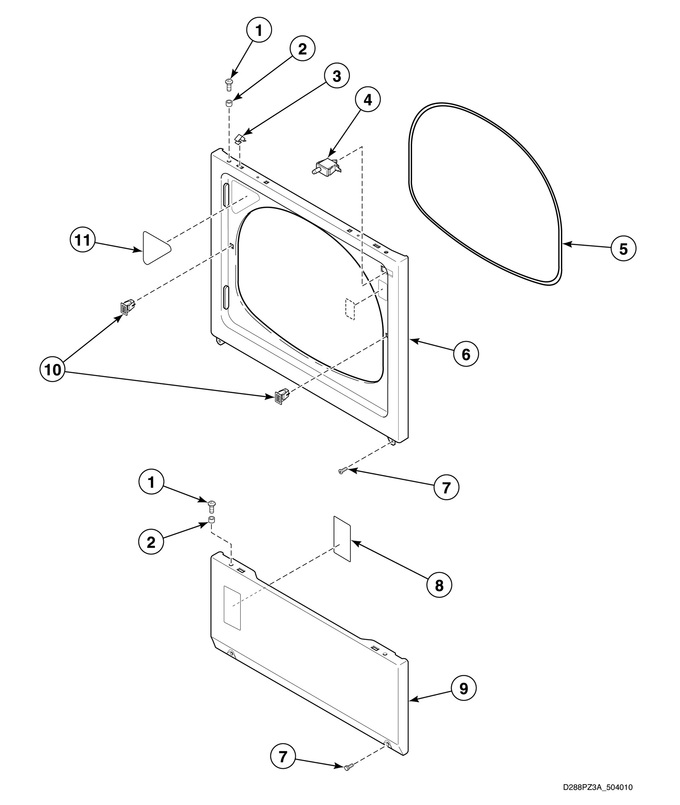

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	39733		Screw				$ 6.95
2	56079		Panel Locator			Immediately	$ 6.95
3	WP22001650		Speed Clip   (Replaces: 28835)			Immediately	$ 7.34
4	D512973		Switch			Immediately	$ 16.22
5	D511056		Front Panel Seal			Immediately	$ 12.66
6	D510066L		Front Panel (comment: Almond)		Appelez-nous	-
6	D510066W		Front Panel (comment: White)		Appelez-nous	-
7	D503661		Screw		Appelez-nous	-
8	-		Not On Your Model		Appelez-nous	-
9	D510069W		Access Panel (comment: White)		Appelez-nous	-
9	D510069L		Access Panel (comment: Almond)		Appelez-nous	-
10	D510177		Door Catch Assembly			Immediately	$ 8.43
11	D500281		Warning/caution Label		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
