Access Panel


Cabinet, Exhaust Duct And Base


Cabinet Top - 10 Degree Front Control Models


Control Cabinet Controls - 10 Degree Front Control Models (drawing 1 Of 2)


Control Panel And Controls - 10 Degree Front Control Models (drawing 1 Of 2)


Control Panel And Controls - 10 Degree Front Control Models (drawing 2 Of 2)


Cylinder Assembly


Exhaust Fan And Idler


Front Bulkhead, Air Duct And Felt Seal (drawing 1 Of 2)


Front Bulkhead, Air Duct And Felt Seal (drawing 2 Of 2)


Front Panel And Seal


Heater Duct And Element Assembly - 1 Phase Electric Models


Junction Box


Junction Box Filter And Harnesses


Label Location On Rear Of Cabinet


Loading Door With Window


Motor And Belt


Motor Connection Block And Tools


Power Cord


Rear Bulkhead, Felt Seal And Cylinder Roller


Terminal Block And Terminals


Terminal Block - Gas And 1 Phase Electric Models


Terminals


Thermistor


Wire Harnesses And Wires - Front Control Models (drawing 1 Of 2)

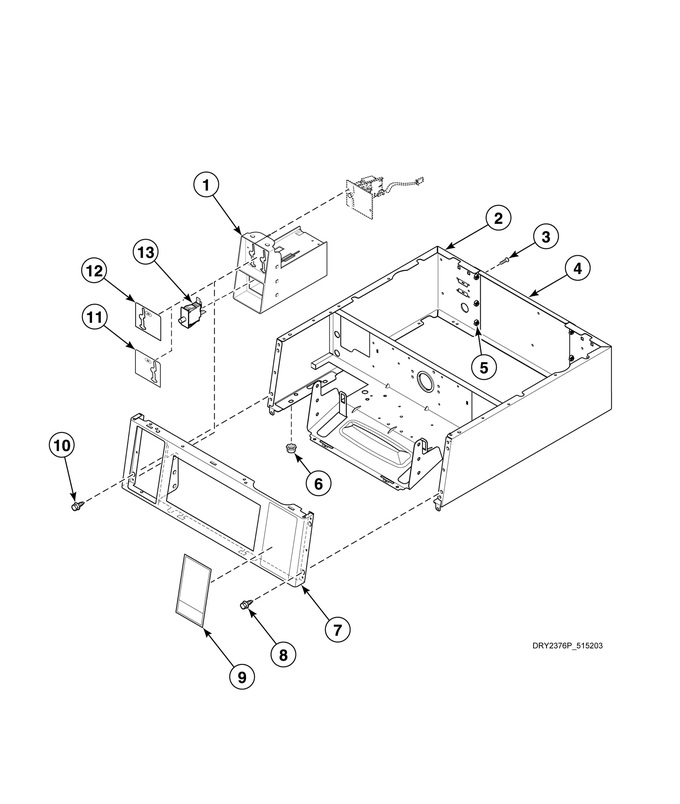

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	-		Not On Your Model		Appelez-nous	-
2	804104B		Wrapper Assembly (comment: Black)		Appelez-nous	-
3	70240301		Screw (comment: 6 Required)		Appelez-nous	-
4	803998		Rear Access Panel		Appelez-nous	-
5	70030501		Expansion Clip (comment: 6 Required)		Appelez-nous	-
6	44087201		Nut		Appelez-nous	-
7	803970B		Control Panel		Appelez-nous	-
8	D503688		Screw (comment: Use With Painted Side Panels)			Immediately	$ 6.95
8	M405188		Screw (comment: Use With Stainless Steel Side Panels)		Appelez-nous	-
9	D514681		Nameplate Overlay		Appelez-nous	-
10	29651		Bolt				$ 6.95
11	-		Not On Your Model		Appelez-nous	-
12	-		Not On Your Model		Appelez-nous	-
13	D512973		Switch			Immediately	$ 16.22
