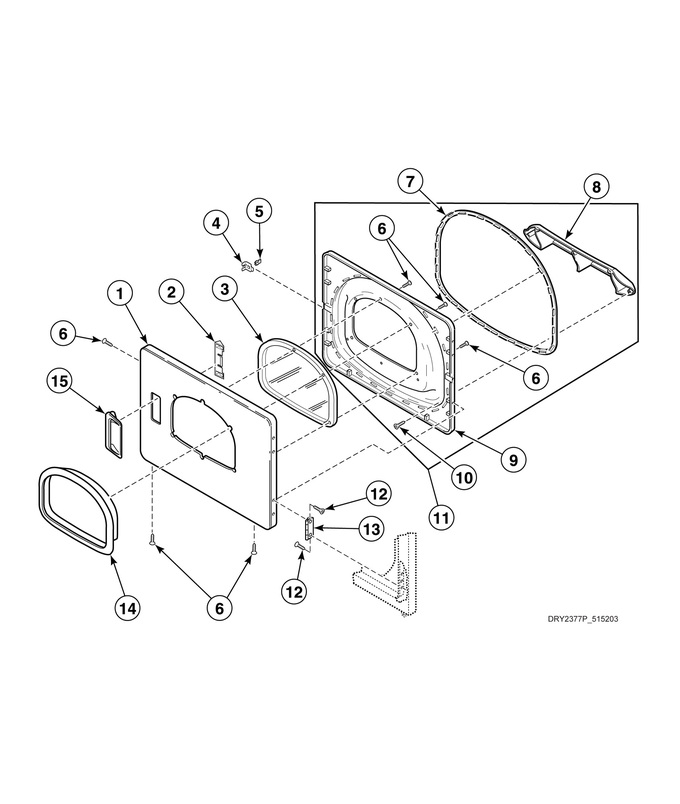

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D513225		Dryer Door (comment: Stainless Steel)		Appelez-nous	-
2	D510129LG		Door Handle Wedge		Appelez-nous	-
3	D503982P		Dryer Door Window				$ 122.78
4	D510127		Door Strike Mount				$ 3.22
5	D510181		Door Strike			Immediately	$ 4.00
6	D500226		Screw				$ 3.88
7	D510147P		Liner Door Seal				$ 25.09
8	D503870LG		Door Liner Grill				$ 31.57
9	D510098LG		Liner And Seal Assembly (comment: Includes Item 7)		Appelez-nous	-
10	D505870		Screw				$ 6.95
11	D513109P		Liner, Seal And Grill Assembly (comment: Gray; Includes Items 7-10)		Appelez-nous	-
12	D500226		Screw   (Replaces: D514461)				$ 3.88
13	D511036		Hinge			Immediately	$ 4.23
14	D512633		Window Trim (comment: Gray)		Appelez-nous	-
15	D511213P		Door Pull And Wedge Kit (comment: Black)				$ 22.36
