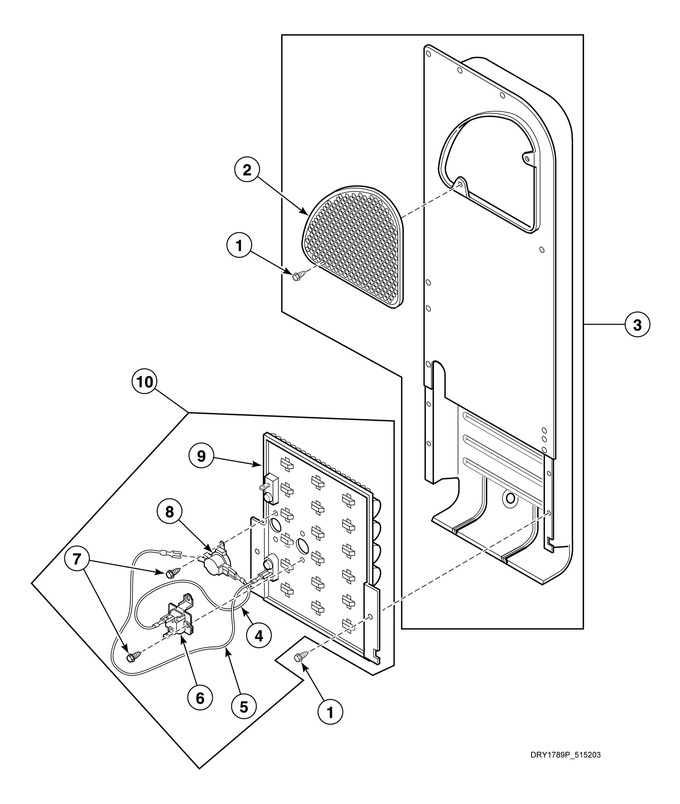

Heater Duct And Element Assembly - 1 Phase Electric Models


Junction Box


Junction Box Filter And Harnesses


Label Location On Rear Of Cabinet


Loading Door With Window


Motor And Belt


Motor Connection Block And Tools


Power Cord


Rear Bulkhead, Felt Seal And Cylinder Roller


Terminal Block And Terminals


Terminal Block - Gas And 1 Phase Electric Models


Terminals


Thermistor


Wire Harnesses And Wires - Front Control Models (drawing 1 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D503688		Screw			Immediately	$ 6.95
2	D518524		Outlet Cover (comment: Black)   (Replaces: D515573)			Immediately	$ 13.81
2	D500820		Outlet Cover			Immediately	$ 38.63
3	D510025P		Heater Duct Assembly (comment: Includes Items 1 And 2)				$ 99.89
4	D510528		Wire Assembly (comment: Orange; Thermostat Jumper; Attaches To Heater Assembly)		Appelez-nous	-
5	D510527		Wire Assembly (comment: Black; Fuse Jumper; Attaches To Heater Assembly)		Appelez-nous	-
6	D518649		Thermal Fuse Assembly   (Replaces: D511412)			Immediately	$ 9.82
7	WP3177991		Screw   (Replaces: 23222)			Immediately	$ 6.47
8	D515873		Limit Thermostat   (Replaces: D510701)			Immediately	$ 81.43
9	D510326P		Heater Assembly (comment: 240 Volt/50 Hertz; 4.8 Kw)				$ 289.21
10	61929		Heater Kit Assembly (comment: 240 Volt/50 Hertz; 4.8 Kw; Includes Items 4-9)				$ 262.26
