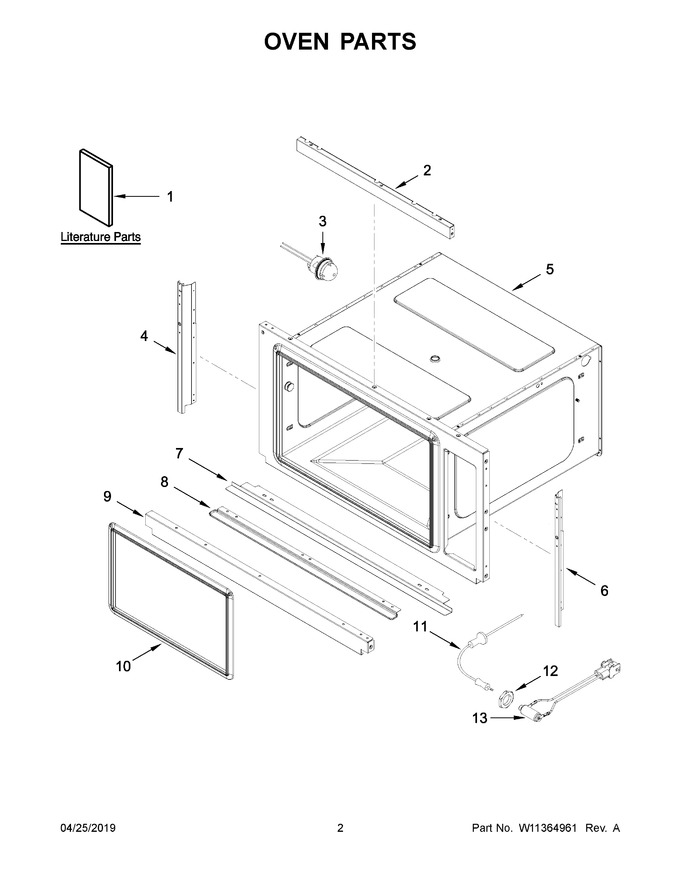

02 - Oven Parts
03 - Control Panel Parts
04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11260095 | Installation Instructions |
|
- | |||||
| 2 | W10586361 | Trim |
|
$ 162.52 | |||||
| 3 | W11353408 | Assembly, Lamp |
|
$ 77.29 | |||||
| 4 | W11353023 | Trim, Left Side |
|
- | |||||
| 5 | N/P | Liner, Oven (not Serviceable) |
|
- | |||||
| 6 | W11353024 | Trim, Right Side |
|
- | |||||
| 7 | W11353324 | Trim, Lower |
|
$ 64.99 | |||||
| 8 | W11353025 | Trim, Shelf |
|
- | |||||
| 9 | W10586389 | Vent, Oven |
|
- | |||||
| 10 | W10591215 | Gasket, Door Kit (Replaces: W10588966) |
|
$ 110.40 | |||||
| 11 | W10577826 | Probe, Food |
|
$ 145.92 | |||||
| 12 | W11348125 | Nut, Meat Probe |
|
- | |||||
| 13 | W10460414 | Jack, Food Probe |
|
- | |||||
| 1A | W11323318 | Use And Care Guide |
|
- |
