01 - Cover Sheet


02 - Oven Parts


03 - Control Panel Parts


04 - Oven Door Parts

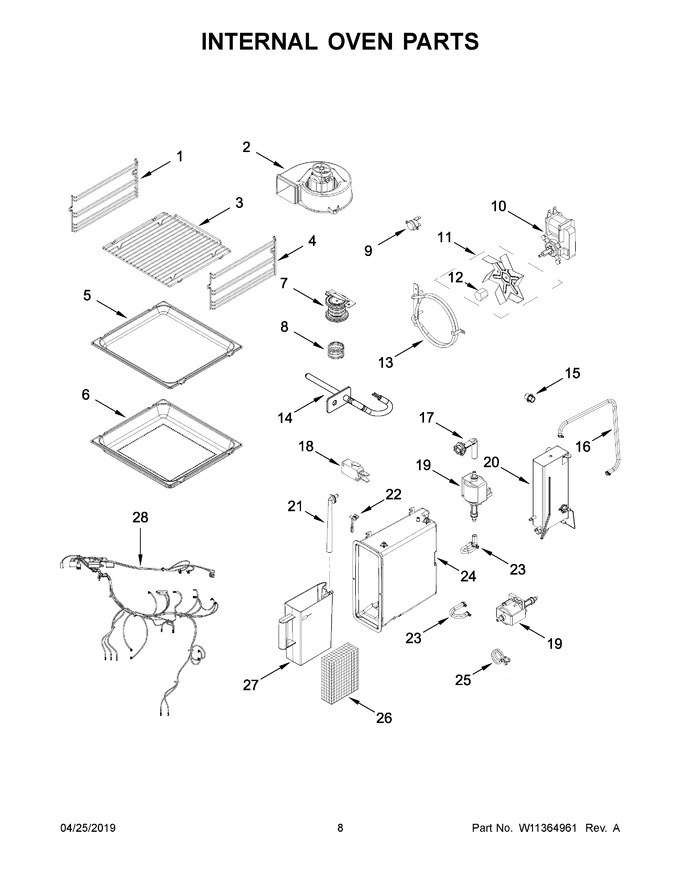

05 - Internal Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10586511		Grid, Rack Left Side				$ 223.92
2	W10586916		Fan, Cooling				$ 302.80
3	W10577824		Rack, Wire Shelf				$ 285.88
4	W10586521		Grid, Rack Right Side		Appelez-nous	-
5	W10577820		Tray, Bake/drip				$ 303.35
6	W10577816		Tray, Steam				$ 311.90
7	W10587885		Gasket, Air Flow		Appelez-nous	-
8	W10587880		Spring, Air Flow		Appelez-nous	-
9	W11607085		Thermostat   (Replaces: 4375430)			Immediately	$ 38.07
10	W11534564		Motor, Convection   (Replaces: W10330571)			Immediately	$ 90.60
11	W10586917		Blade, Convection Fan Includes Nut				$ 41.30
12	W11237447		Nut, Convection Fan   (Replaces: W11101380)				$ 12.10
13	WPW10493735		Heater, Convection Element   (Replaces: W10493735)			Immediately	$ 94.71
14	W11353409		Sensor, Cavity Temperature				$ 71.09
15	W10588572		Gasket, Steam Outlet				$ 84.75
16	W11366439		Tubing, Silicon   (Replaces: W10587812)				$ 18.86
17	W10586491		Tubing, Connection Boiler				$ 96.53
18	W10587790		Switch, Micro				$ 28.00
19	W10586915		Pump, Fill And Drain			Immediately	$ 324.67
20	W11353847		Heater, Boiler   (Replaces: W11353385)				$ 348.93
21	W10587540		Pipe, Water Container Fill				$ 24.20
22	W10586492		Sensor, Boiler Temperature				$ 59.81
23	W11366439		Tube, Silicon				$ 18.86
24	W10586494		Housing, Water Container				$ 171.64
25	W10587851		Clamp, Tubing		Appelez-nous	-
26	131951003452		Sponge		Appelez-nous	-
27	461968974021		Reservoir, Water Container				$ 151.25
28	W11353395		Harness, Main				$ 243.46
