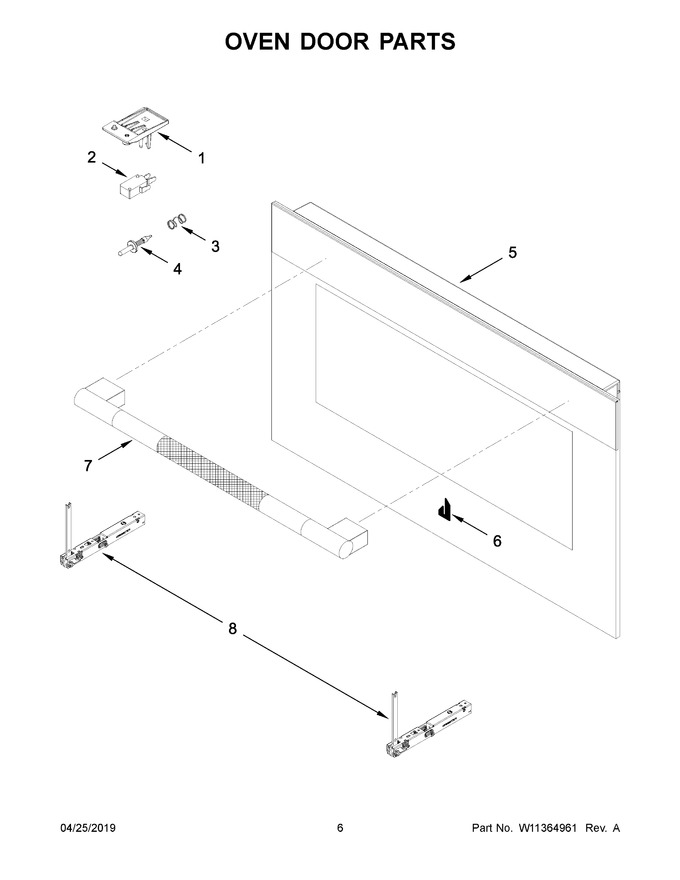

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11353328 | Bracket, Door Switch |
|
$ 83.04 | |||||
| 2 | W10587790 | Switch, Micro |
|
$ 28.00 | |||||
| 3 | W10586465 | Spring, Door Switch Actuator |
|
$ 19.54 | |||||
| 4 | W10586462 | Actuator, Door Switch |
|
$ 24.84 | |||||
| 5 | W11353332 | Door, Oven |
|
$ 678.68 | |||||
| 6 | W11700312 | Logo (stainless) (Replaces: W11238658) |
|
Immediately | $ 99.89 | ||||
| 7 | W11353331 | Handle, Door |
|
- | |||||
| 8 | W11353325 | Hinge, Door |
|
$ 139.91 |
