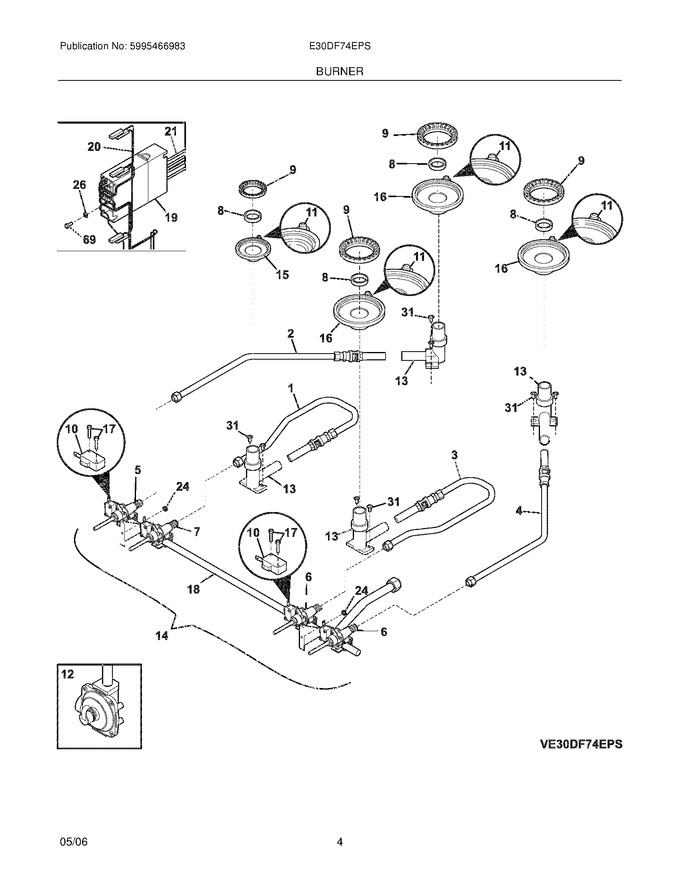

05 - Burner


07 - Body


09 - Maintop


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304453973		Tubing Assembly,burner ,left Front				$ 194.56
2	5304453974		Tubing Assembly,burner ,left Rear		Appelez-nous	-
3	5304453975		Tubing Assembly,burner ,right Front				$ 130.03
4	5304453976		Tubing Assembly,burner ,right Rear		Appelez-nous	-
8	5304446028		Nut,burner Head ,brass				$ 69.93
9	5304453978		Rings,burner ,set Of 4				$ 261.90
13	5304452819		Base,burner				$ 128.13
15	5304452825		Burner Head Assy,``b`` ,8500 Btu ,w/ignitor				$ 215.37
16	5304452826		Burner Head Assy,``d`` ,14000 Btu ,w/ignitor				$ 288.13
17	5304446023		Screw,ignitor Switch		Appelez-nous	-
18	5304453982		Tube,manifold		Appelez-nous	-
19	5304445999		Module,assembly ,ignitor Spark				$ 449.14
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
26	5304452823		Washer,1/2``		Appelez-nous	-
31	5304452822		Screw,slot Hex Hd ,no.10 X 3/8``		Appelez-nous	-
69	5304452792		Screw,mounting		Appelez-nous	-
F10	5304446014		Switch,ignitor				$ 72.98
F11	5304453979		Ignitor Assembly,burner ,w/jacket				$ 200.21
F12	5304453980		Regulator,pressure				$ 251.08
F14	5304453981		Manifold Assembly,w/valves				$ 738.66
F20	5304452808		Harness,wiring ,cooktop				$ 273.03
F21	5304452812		Harness,wiring ,ignitors				$ 339.26
F5	5304453977		Valve Assembly,w/switch ,left Rear		Appelez-nous	-
F6	5304453238		Valve Assembly,w/switch ,(2)				$ 339.06
F7	5304453239		Valve Assembly,w/switch ,left Front				$ 317.81
NI	5304446002		Jacket,ignitor Wire				$ 13.12
NI	5304457162		Lp Conversion Kit				$ 286.49
