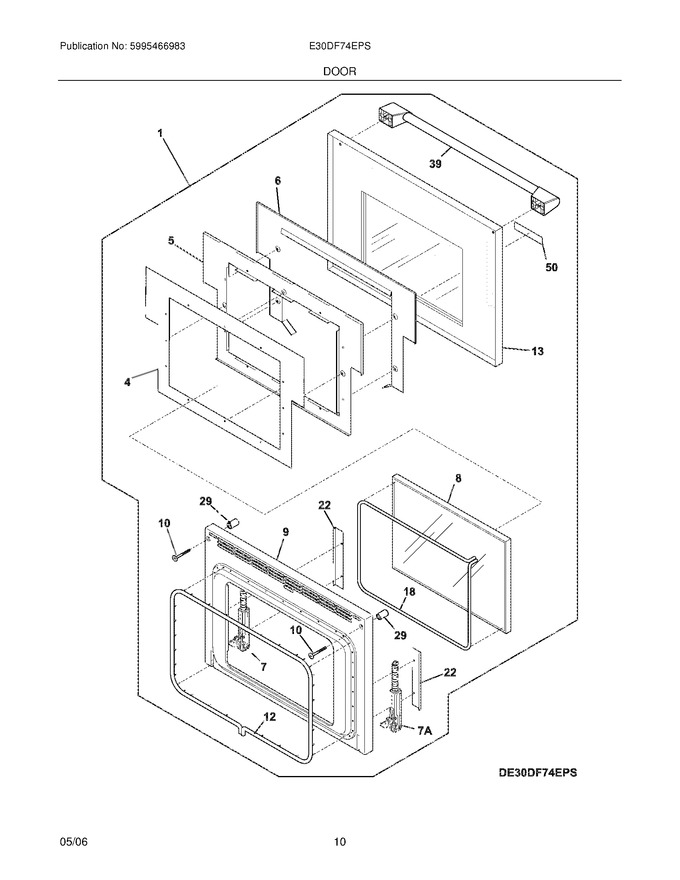

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304454000		Door Assembly,complete ,w/handle		Appelez-nous	-
4	5304456530		Shield,heat ,lower		Appelez-nous	-
5	5304456531		Shield,heat ,inner		Appelez-nous	-
6	5304456532		Shield,heat ,outer		Appelez-nous	-
7	5304456533		Hinge,door ,rh		Appelez-nous	-
8	5304456535		Glass,window Package		Appelez-nous	-
9	5304456536		Liner,door		Appelez-nous	-
10	5304453264		Screw,handle Mtg.				$ 7.34
12	5304456537		Gasket,door		Appelez-nous	-
13	5304456538		Door Skin,assembly		Appelez-nous	-
18	5304456539		Gasket,glass Pack		Appelez-nous	-
22	5304456540		Bracket,hinge Cover ,(2)		Appelez-nous	-
29	5304456541		Spacer,handle ,(2)		Appelez-nous	-
39	5304453267		Handle Assembly,w/endcaps ,large Oven		Appelez-nous	-
50	5304456542		Nameplate,electrolux				$ 64.94
7A	5304456534		Hinge,door ,lh		Appelez-nous	-
NI	5304456543		Screw,wshr Hd ,no.8 X 1/2`` ,(2)		Appelez-nous	-
