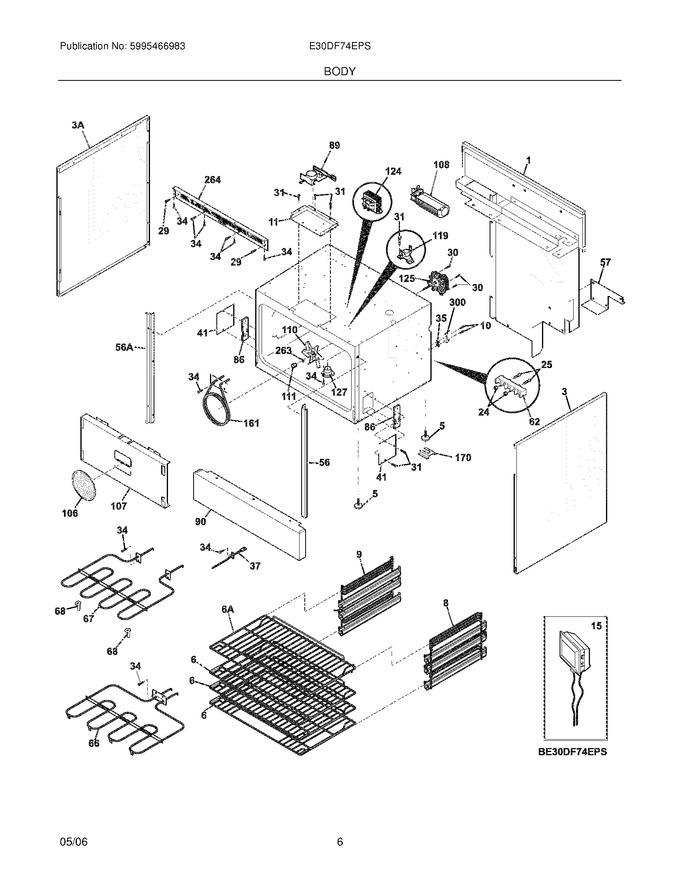

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304453983		Panel,main Back		Appelez-nous	-
3	5304453984		Panel,body Side ,rh		Appelez-nous	-
5	5304453986		Leveler,adjustable ,(4)		Appelez-nous	-
6	5304453987		Rack,extendable ,(3)				$ 172.88
8	5304452867		Support,rack ,rh				$ 611.42
9	5304452868		Support,rack ,lh				$ 472.82
10	5304452830		Screw,no.6 - 32 X 1`` ,w/washer		Appelez-nous	-
11	5304453989		Plate,latch		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
25	5304446287		Screw,phil Pan Hd ,no.8-32 X 3/4 ,(2)		Appelez-nous	-
29	5304452855		Bumper,rubber ,(2)				$ 13.48
30	5304452862		Screw,slot Hex Hd ,no.8 X .370``		Appelez-nous	-
31	5304452822		Screw,slot Hex Hd ,no.10 X 3/8``		Appelez-nous	-
34	5304452454		Screw,no.8 X .375``				$ 9.88
35	5304452866		Washer,fiber ,(2)		Appelez-nous	-
41	5304452838		Cover,hinge Opening ,(2)		Appelez-nous	-
56	5304453990		Trim,body Side ,rh		Appelez-nous	-
57	5304453992		Panel,service ,regulator		Appelez-nous	-
66	5304452870		Element,bake ,large Oven				$ 348.81
68	5304403015		Support,hanger ,(2) ,broil Element				$ 35.04
86	5304452854		Receptacle,hinge ,(2)				$ 33.35
90	5304453994		Panel,bottom Trim		Appelez-nous	-
106	5304452860		Filter,convection				$ 167.90
107	5304453995		Cover,convection Fan		Appelez-nous	-
110	5304452843		Blade,convection Fan		Appelez-nous	-
111	5304452844		Nut,convection Fan		Appelez-nous	-
127	5304452858		Eliminator,smoke				$ 104.58
170	5304452833		Bracket,anti-tip ,floor ,(2)				$ 39.26
263	5304452845		Washer,convection Fan		Appelez-nous	-
264	5304453996		Grill,intake ,top		Appelez-nous	-
3A	5304453985		Panel,body Side ,lh		Appelez-nous	-
56A	5304453991		Trim,body Side ,lh		Appelez-nous	-
6A	5304453988		Rack,fixed		Appelez-nous	-
F108	5304452856		Blower,fan				$ 393.22
F119	5304452861		Thermostat,temp. Cutout				$ 169.68
F124	5304452847		Transformer				$ 356.56
F125	5304452842		Motor,convection Fan		Appelez-nous	-
F15	5304452872		Light Assembly,halogen ,(3)				$ 360.50
F161	5304452857		Element,convection				$ 246.04
F300	5304452871		Switch,interlock ,racks				$ 57.41
F37	5304452846		Probe,temperature ,small Oven				$ 210.89
F62	5304453993		Harness,main Wiring ,w/term. Block		Appelez-nous	-
F67	5304452869		Element,broil ,large Oven				$ 236.86
F89	5304452859		Latch,door		Appelez-nous	-
NI	5304452831		Bulb,halogen ,20w				$ 132.12
NI	5304452873		Harness,wiring ,lg Oven Light		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
