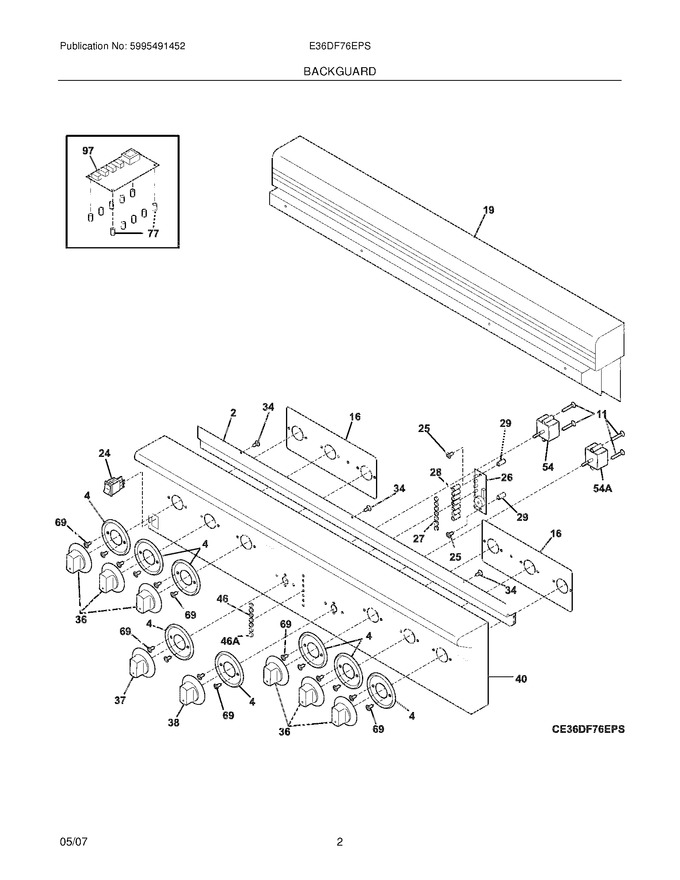

03 - Backguard


05 - Burner


07 - Body


09 - Maintop


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	5304452785		Support,spill Tray ,front		Appelez-nous	-
4	5304446031		Bezel,burner Knob				$ 90.33
11	5304452790		Screw,pan ,6/32 X 1/2		Appelez-nous	-
16	5304452788		Panel,mounting ,(2)		Appelez-nous	-
19	5304452787		Panel,backguard		Appelez-nous	-
25	5304446272		Screw,phil Hd ,no.8-32 X 1/4		Appelez-nous	-
27	5304452786		Reatiner,lens		Appelez-nous	-
28	5304452796		Tubing,indicator Light				$ 35.16
29	5304452793		Spacer,light Board		Appelez-nous	-
34	5304452454		Screw,no.8 X .375``				$ 9.88
36	5304452800		Knob,top Burner				$ 105.89
37	5304452801		Knob,oven Selector				$ 192.47
38	5304452802		Knob,oven Temp.				$ 71.87
40	5304452789		Panel,control ,stainless		Appelez-nous	-
46	5304452795		Lens,indicator Light ,blue		Appelez-nous	-
69	5304452792		Screw,mounting		Appelez-nous	-
77	5304452791		Support,control Board		Appelez-nous	-
46A	5304452805		Lens,indicator Light ,red		Appelez-nous	-
F24	5304452794		Switch,rocker				$ 49.28
F26	5304452799		Board,indicator Light ,(2) ,led				$ 333.46
F54	5304452797		Control,oven Selector			Immediately	$ 381.46
F54A	5304452798		Control,oven Temp.			Immediately	$ 376.15
F97	5304452784		Board,control				$ 437.50
NI	5304452804		Harness,wiring ,oven Controls		Appelez-nous	-
NI	5304452803		Harness,wiring ,indicator Light				$ 172.33
