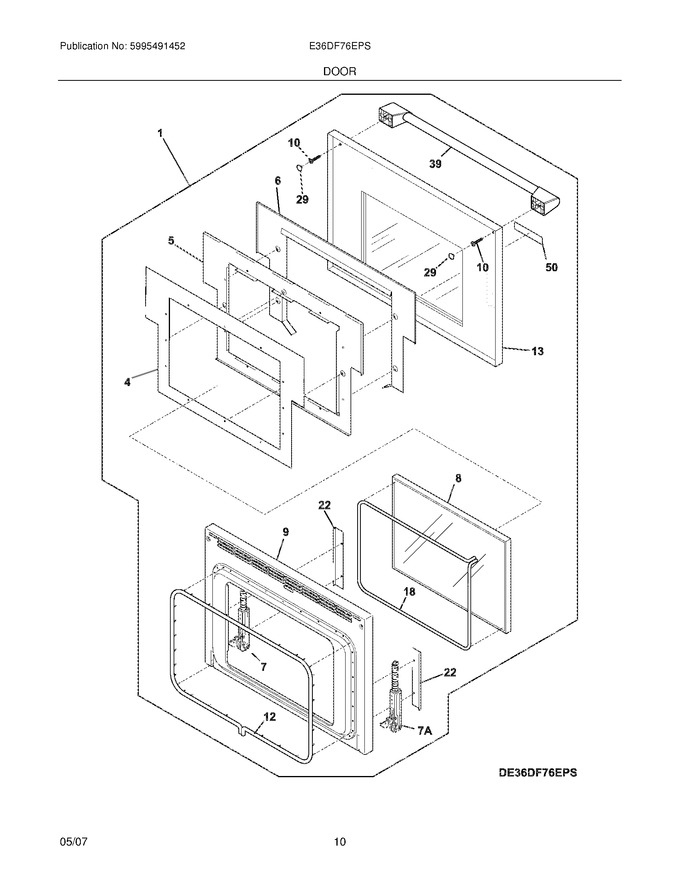

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304456518		Door Assembly,complete ,w/handle				$ 1,489.27
4	5304456544		Shield,heat ,lower ,large Oven		Appelez-nous	-
5	5304456545		Shield,heat ,inner ,large Oven		Appelez-nous	-
6	5304456546		Shield,heat ,outer ,large Oven		Appelez-nous	-
7	5304456516		Hinge,door ,rh ,large Oven				$ 265.24
8	5304456547		Glass,window Package ,large Oven		Appelez-nous	-
9	5304456548		Liner,door ,large Oven				$ 470.67
10	5304456549		Screw,handle Mtg. ,(2)		Appelez-nous	-
12	5304456550		Gasket,door ,large Oven				$ 253.97
13	5304452885		Door Assembly,complete ,w/handle				$ 909.97
18	5304456551		Gasket,glass Pack ,large Oven		Appelez-nous	-
22	5304456540		Bracket,hinge Cover ,(2)		Appelez-nous	-
29	5304452882		Plug,hole ,(2)		Appelez-nous	-
39	5304452884		Handle Assembly,w/endcaps		Appelez-nous	-
50	5304456542		Nameplate,electrolux ,(2)				$ 64.94
7A	5304456517		Hinge,door ,lh ,large Oven				$ 294.42
NI	5304456543		Screw,wshr Hd ,no.8 X 1/2`` ,(2)		Appelez-nous	-
