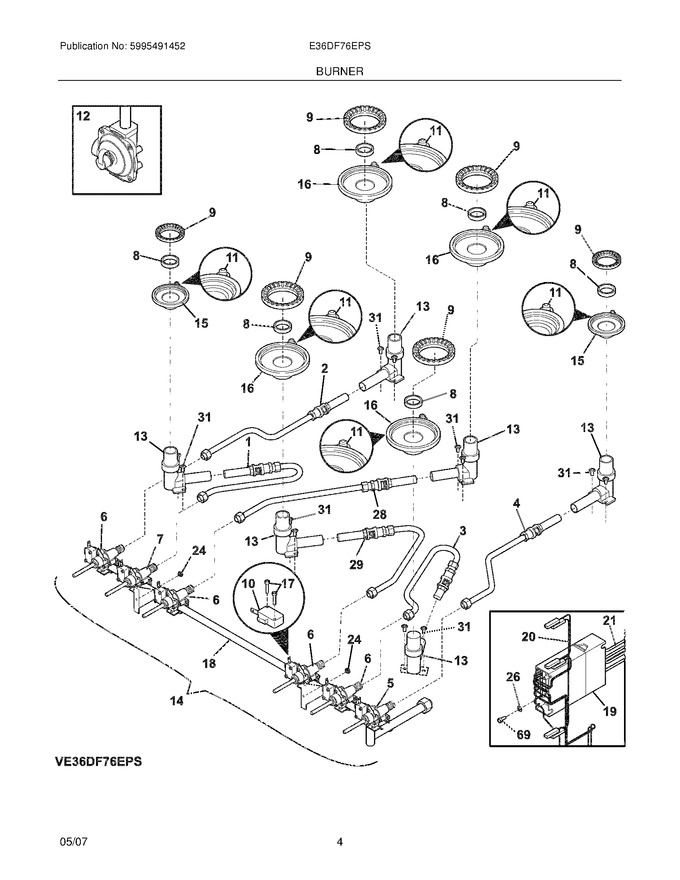

05 - Burner


07 - Body


09 - Maintop


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5304446028		Nut,burner Head ,brass				$ 69.93
9	5304452881		Rings,burner ,set Of 6				$ 464.94
13	5304452819		Base,burner				$ 128.13
15	5304452825		Burner Head Assy,``b`` ,8500 Btu ,w/ignitor				$ 215.37
16	5304452826		Burner Head Assy,``d`` ,14000 Btu ,w/ignitor				$ 288.13
17	5304446023		Screw,ignitor Switch		Appelez-nous	-
18	5304452807		Tube,manifold		Appelez-nous	-
24	5304446015		Nut,hex Keps ,no.8-32		Appelez-nous	-
26	5304452823		Washer,1/2``		Appelez-nous	-
31	5304452822		Screw,slot Hex Hd ,no.10 X 3/8``		Appelez-nous	-
69	5304452792		Screw,mounting		Appelez-nous	-
F1	5304452813		Tubing Assembly,burner ,left Front				$ 216.46
F10	5304446014		Switch,ignitor				$ 72.98
F11	5304452824		Ignitor,burner ,(6)		Appelez-nous	-
F12	5304452820		Regulator,pressure		Appelez-nous	-
F14	5304452806		Manifold Assembly,w/valves		Appelez-nous	-
F19	5304452821		Module,ignitor Wire				$ 364.61
F2	5304452814		Tubing Assembly,burner ,left Rear				$ 191.92
F20	5304452808		Harness,wiring ,cooktop				$ 273.03
F21	5304452812		Harness,wiring ,ignitors				$ 339.26
F28	5304452816		Tubing Assembly,burner ,center Rear				$ 118.81
F29	5304452815		Tubing Assembly,burner ,center Front				$ 184.85
F3	5304452817		Tubing Assembly,burner ,right Front				$ 162.20
F4	5304452818		Tubing Assembly,burner ,right Rear				$ 196.86
F5	5304452810		Valve Assembly,w/switch ,right Rear				$ 267.98
F6	5304452811		Valve Assembly,w/switch ,(4)		Appelez-nous	-
F7	5304452809		Valve Assembly,w/switch ,left Front		Appelez-nous	-
NI	5304457161		Lp Conversion Kit 36`` And 48``				$ 269.93
NI	5304446002		Jacket,ignitor Wire				$ 13.12
