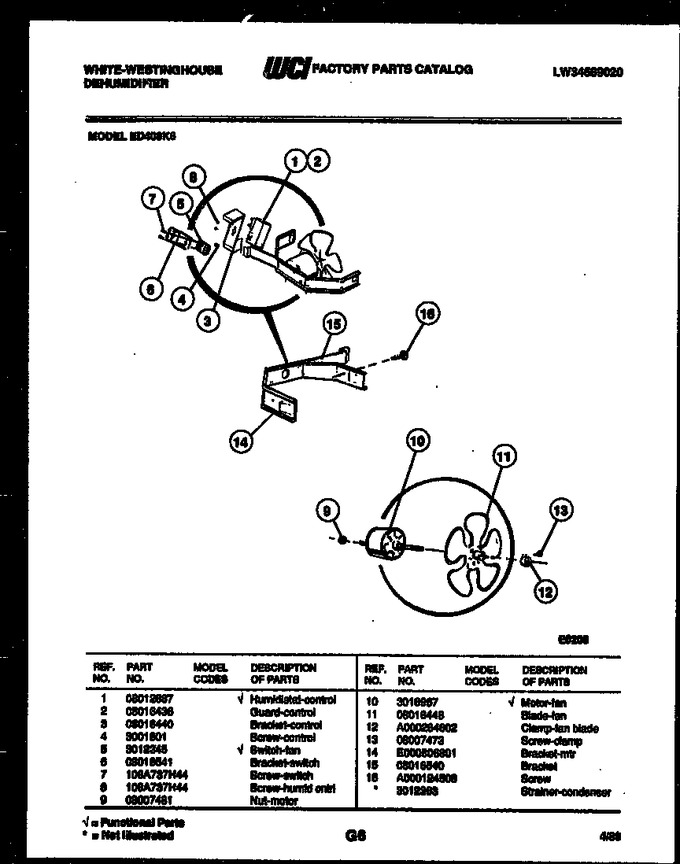

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08012687 | Humidistat-control |
|
- | |||||
| 2 | 08016436 | Guard-control |
|
- | |||||
| 3 | 08016440 | Bracket-control |
|
- | |||||
| 4 | 3001801 | Screw-control |
|
- | |||||
| 5 | 3012345 | Switch-fan |
|
- | |||||
| 6 | 08016541 | Bracket-switch |
|
- | |||||
| 7 | 108A737H44 | Screw-switch |
|
- | |||||
| 8 | 108A737H44 | Screw-humid Cntrl |
|
- | |||||
| 9 | 08007481 | Nut |
|
$ 5.81 | |||||
| 10 | 3016967 | Motor-fan |
|
- | |||||
| 11 | 08016448 | Blade-fan |
|
- | |||||
| 12 | A000264602 | Clamp-fan Blade |
|
- | |||||
| 13 | 08007473 | Screw-clamp |
|
- | |||||
| 14 | E000806801 | Bracket-mtr |
|
- | |||||
| 15 | 08016540 | Bracket |
|
- | |||||
| 16 | A000124508 | Screw |
|
- | |||||
| *86335 | 3012363 | Strainer-condenser |
|
- |
