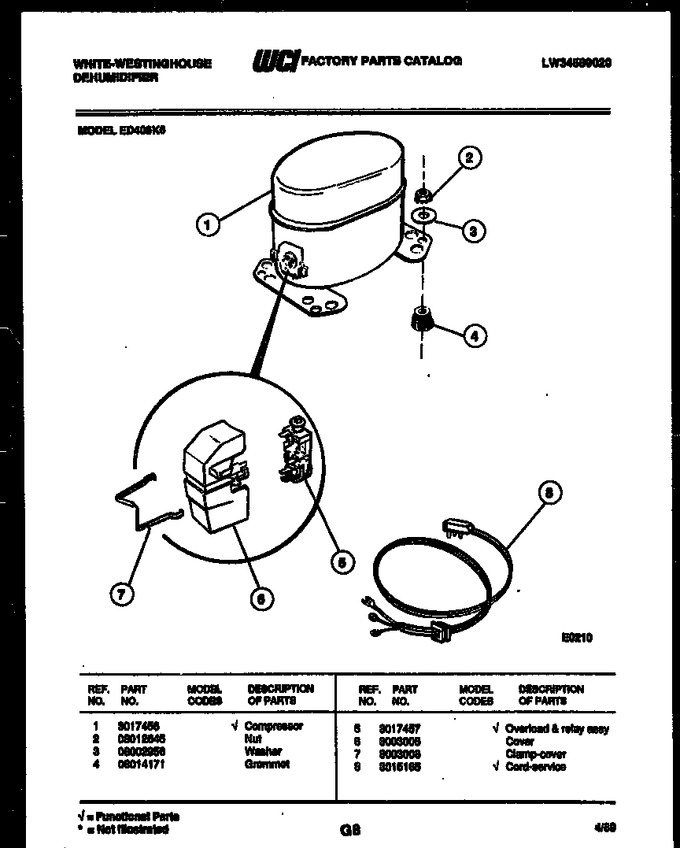

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3017456 | Compressor |
|
- | |||||
| 2 | 08012645 | Nut |
|
- | |||||
| 3 | 08002956 | Washer |
|
- | |||||
| 4 | 08014171 | Grommet |
|
- | |||||
| 5 | 3017457 | Overload & Relay Assy |
|
- | |||||
| 6 | 3003005 | Cover |
|
- | |||||
| 7 | 3003006 | Clamp-cover |
|
- | |||||
| 8 | 3015165 | Cord-service |
|
- |
