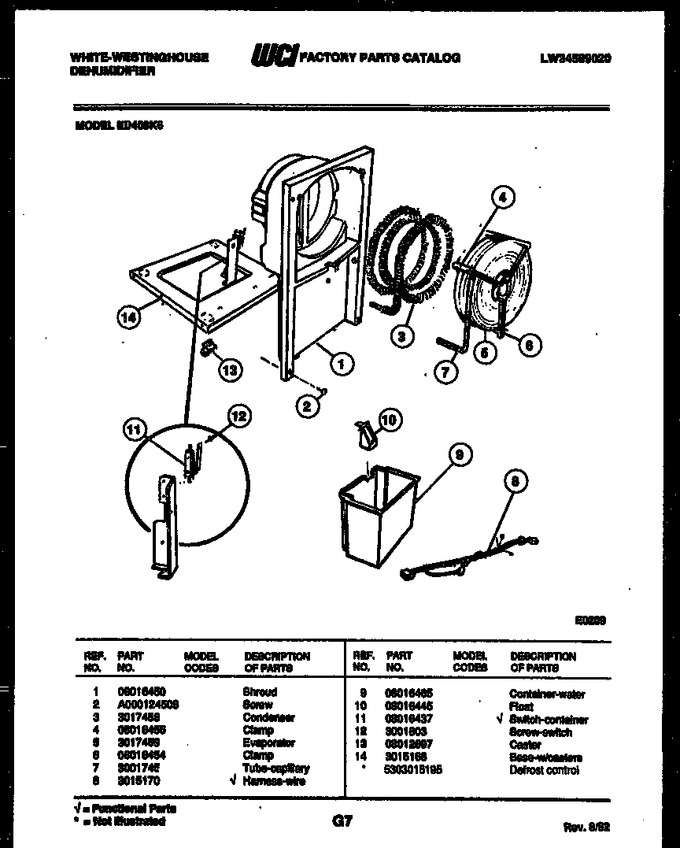

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 08016450 | Shroud |
|
- | |||||
| 2 | A000124508 | Screw |
|
- | |||||
| 3 | 3017458 | Condenser |
|
- | |||||
| 4 | 08016455 | Clamp |
|
- | |||||
| 5 | 3017459 | Evaporator |
|
- | |||||
| 6 | 08016454 | Clamp |
|
- | |||||
| 7 | 3001745 | Tube-capillary |
|
- | |||||
| 8 | 3015170 | Harness-wire |
|
- | |||||
| 9 | 08016465 | Container-water |
|
- | |||||
| 10 | 08016445 | Float |
|
- | |||||
| 11 | 08016437 | Switch-container |
|
- | |||||
| 12 | 3001803 | Screw-switch |
|
- | |||||
| 13 | 08012697 | Caster |
|
- | |||||
| 14 | 3015168 | Base-w/ Casters |
|
- | |||||
| *86345 | 5303015195 | Defrost Control |
|
- |
