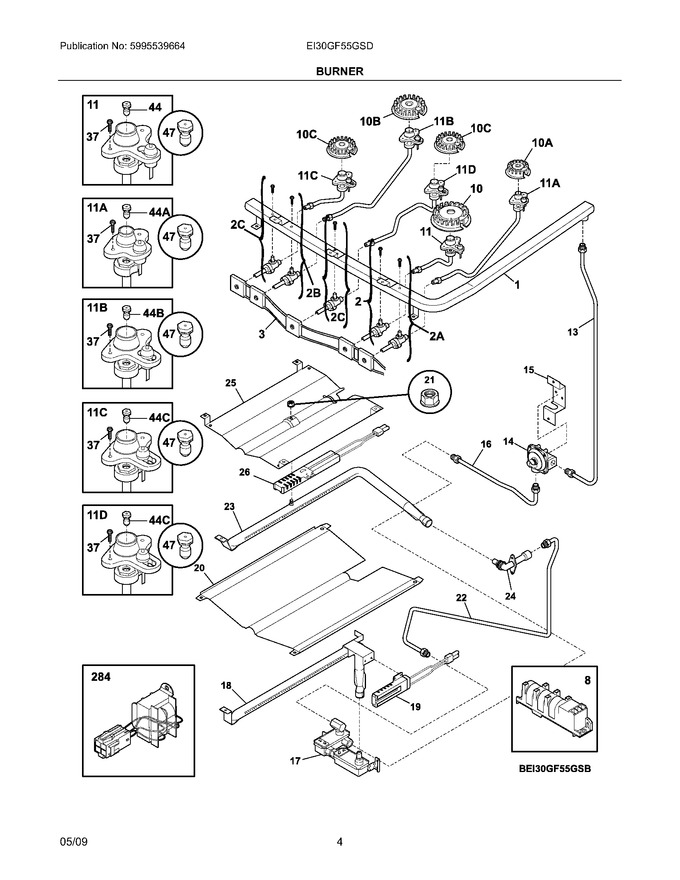

05 - Burner


07 - Body


09 - Top/drawer


11 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	808608804		Module,spark   (Replaces: 7318079001)			Immediately	$ 76.06
14	7316416700		Regulator,pressure		Appelez-nous	-
15	7316091600		Bracket,regulator		Appelez-nous	-
20	7316401401		Baffle,oven Burner		Appelez-nous	-
21	75303013272		Nut,hex Head Sems		Appelez-nous	-
25	7316401301		Baffle,broil Burner		Appelez-nous	-
37	7316240600		Screw,assy Mtg ,(8) ,ignitor/orifice		Appelez-nous	-
44	7316237912		Orifice,top Burner ,16k		Appelez-nous	-
284	316536100		Transformer   (Replaces: 7316536100)			Immediately	$ 210.83
44A	7316237903		Orifice,top Burner ,5k		Appelez-nous	-
44B	7316237900		Orifice,top Burner ,14k		Appelez-nous	-
44C	7316237902		Orifice,top Burner ,center ,9.5k		Appelez-nous	-
F1	316505200		Manifold		Appelez-nous	-
F10	7316223300		Burner,sealed ,16/17k		Appelez-nous	-
F10A	7316206401		Burner,sealed ,5k		Appelez-nous	-
F10B	7316223400		Burner,sealed ,14k		Appelez-nous	-
F10C	7316212400		Burner,sealed ,9.5k		Appelez-nous	-
F11	7316430500		Ignitor/orifice Assy.,top Burner ,right Front,16k ,w/holder ,tube		Appelez-nous	-
F11A	7316430801		Ignitor/orifice Assy.,top Burner ,right Rear,5k ,w/holder ,tube		Appelez-nous	-
F11B	7316430400		Ignitor/orifice Assy.,top Burner ,left Rear,14k ,w/holder ,tube		Appelez-nous	-
F11C	7316237805		Ignitor/orifice Assy.,top Burner ,front		Appelez-nous	-
F11D	7316430700		Ignitor/orifice Assy.,top Burner ,center,9.5k ,w/holder, Tube		Appelez-nous	-
F13	7316545700		Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings		Appelez-nous	-
F16	7316431000		Tube-valve To Rgltr,3/8		Appelez-nous	-
F17	316404901		Valve,safety   (Replaces: 7316404901)				$ 365.72
F18	316404400		Burner,oven   (Replaces: 7316404400)				$ 109.10
F19	7316489404		Ignitor,oven Burner		Appelez-nous	-
F2	316520703		Valve,burner ,14.2k				$ 146.01
F22	7316537100		Tube-valve To Mixer		Appelez-nous	-
F23	7316404300		Burner,broiler		Appelez-nous	-
F24	7316409700		Elbow,mixer		Appelez-nous	-
F26	7316489403		Ignitor,burner		Appelez-nous	-
F2A	316520705		Valve,burner ,5k				$ 86.89
F2B	316520708		Valve,burner ,14k		Appelez-nous	-
F2C	316520706		Valve,burner ,9.5k				$ 98.12
F3	7316518200		Harness Assembly,ignitor ,w/switches		Appelez-nous	-
F47	7316243716		Lp Conversion Kit,gray		Appelez-nous	-
FNI	7316526900		Harness,ignitor		Appelez-nous	-
NI	7316536300		Bracket,spark Module		Appelez-nous	-
NI	316215600		Screw,valve Mtg. ,1/4 - 20			Immediately	$ 14.18
NI	7316434900		Shield,valve ,bridge Burner		Appelez-nous	-
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-
NI	7316021109		Screw,8-18 X 0.5 ,chrome		Appelez-nous	-
NI	7316021110		Screw,8-18 X 0.5 ,black		Appelez-nous	-
NI	7316021132		Screw,8-18 X 11/16 ,black ,(3)		Appelez-nous	-
NI	7316089500		Screw,10-16 X .486		Appelez-nous	-
NI	7316401500		Cover,broil Ignitor		Appelez-nous	-
NI	75303271648		Screw,wafer Hd Sq Dr ,8-18ab X 0.5		Appelez-nous	-
NI	7316001003		Screw,ground Wire		Appelez-nous	-
NI	7316064103		Wire,ground Assembly		Appelez-nous	-
