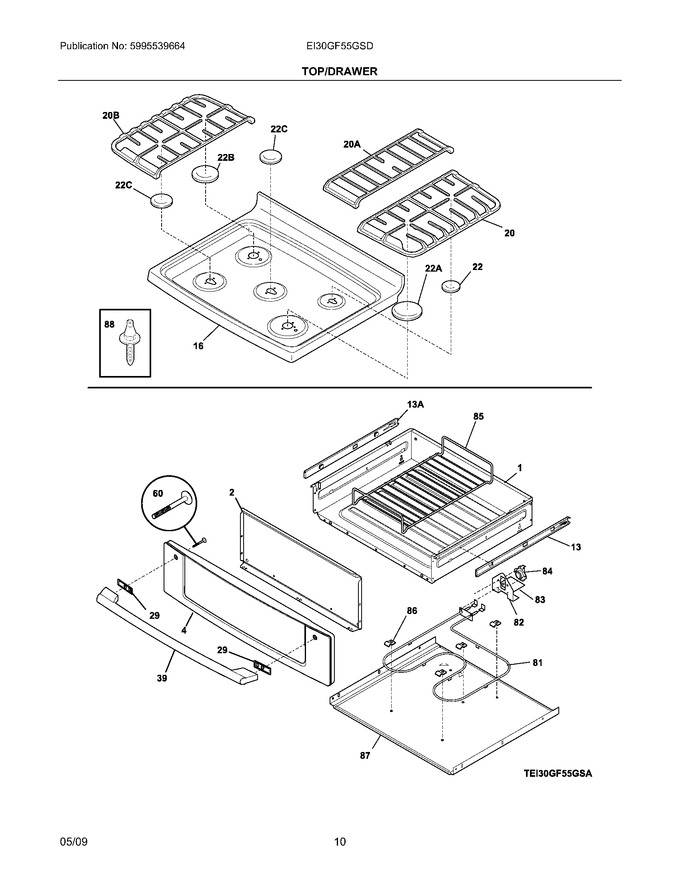

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	7316408902		Drawer,warmer		Appelez-nous	-
2	7316502901		Liner,drawer		Appelez-nous	-
4	7316517107		Panel Assembly,drawer Glass ,outer ,w/trim & Tape		Appelez-nous	-
13	7316415000		Glide,warmer ,inner Rh		Appelez-nous	-
16	7316506812		Maintop,assewbly ,black		Appelez-nous	-
20	316537800		Grate,double Burner ,lh   (Replaces: 7316537800)				$ 246.02
22	7316206604		Cap,5k Burner ,black		Appelez-nous	-
29	7316505401		Spacer,handle ,gray ,(2)		Appelez-nous	-
39	7241761017		Handle,drawer ,stainless		Appelez-nous	-
60	7316513301		Screw,handle Mtg ,10-24 X 2.188 ,(2)		Appelez-nous	-
82	7316093200		Bracket,element Mtg		Appelez-nous	-
83	7316093300		Shield,terminal ,warmer Drawer		Appelez-nous	-
84	7316093502		Thermo Disc,warmer Drawer		Appelez-nous	-
85	807328301		Rack,warmer Drawer   (Replaces: 7316425900)				$ 87.21
86	7316095800		Clip,hold Down ,warmer Element		Appelez-nous	-
87	7316091900		Base,warmer Drawer		Appelez-nous	-
88	7316099500		Pin,guide ,(2)		Appelez-nous	-
13A	7316415001		Glide,warmer ,inner Lh		Appelez-nous	-
20A	316537900		Grate,burner ,center   (Replaces: 7316537900)				$ 227.28
20B	316538000		Grate,double Burner ,rh   (Replaces: 7316538000)				$ 242.06
22A	7316271904		Cap,16/17k Burner ,black		Appelez-nous	-
22B	7316219905		Cap,14k Burner ,black		Appelez-nous	-
22C	7316213505		Cap,9.5k Burner ,black		Appelez-nous	-
F81	7316437300		Element,warmer Drawer		Appelez-nous	-
NI	316008401		Washer,3/4 Od X 1/4 Id ,steel   (Replaces: 7316008401)				$ 11.34
NI	7316525623		Harness,warm Base		Appelez-nous	-
NI	7316021105		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black		Appelez-nous	-
NI	7316021109		Screw,8-18 X 0.5 ,chrome		Appelez-nous	-
