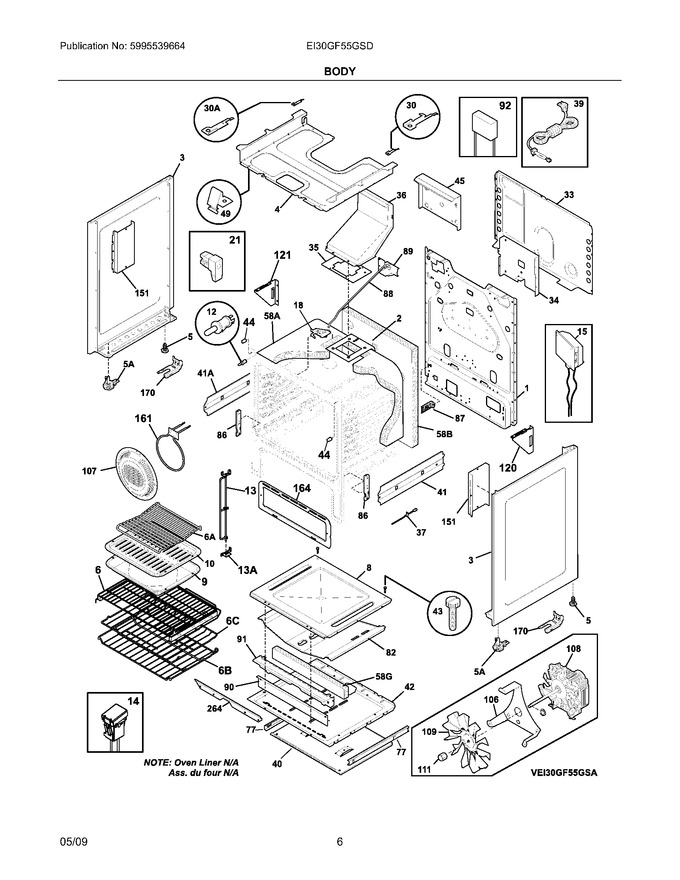

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7316504500 | Back,main |
|
- | |||||
| 2 | 7316525800 | Brace,oven Top |
|
- | |||||
| 3 | 316400144 | Panel,bodyside ,black ,rh (Replaces: 7316400118) |
|
Immediately | $ 134.69 | ||||
| 3 | 7316400119 | Panel,bodyside ,black ,lh |
|
- | |||||
| 4 | 7316505300 | Box,burner |
|
- | |||||
| 5 | 7316272900 | Screw,leveling ,plastic ,rear ,(2) |
|
- | |||||
| 6 | 316571800 | Rack Assembly,w/glides (Replaces: 7316508200) |
|
$ 290.93 | |||||
| 8 | 316400603 | Panel,oven Bottom (Replaces: 7316400604) |
|
Immediately | $ 186.56 | ||||
| 9 | 7316081901 | Pan,broiler ,cobalt Blue |
|
- | |||||
| 10 | 7316082001 | Insert,broiler Pan ,cobalt Blue |
|
- | |||||
| 12 | 316445500 | Switch,oven Light ,door Frame (Replaces: 7316445500) |
|
Immediately | $ 54.74 | ||||
| 13 | 7316529004 | Lever Assembly,rack Sensing |
|
- | |||||
| 14 | 316508301 | Switch Assembly,rack Sensing (Replaces: 7316508301) |
|
$ 207.03 | |||||
| 21 | 7316408000 | Clip,bodyside |
|
- | |||||
| 30 | 7316217700 | Bracket,hinge ,rh ,main Top |
|
- | |||||
| 33 | 7316402500 | Shield,rear Wall |
|
- | |||||
| 34 | 7316404200 | Shield,heat |
|
- | |||||
| 35 | 7316542100 | Gasket-flue |
|
- | |||||
| 36 | 7316507901 | Flue,cobalt |
|
- | |||||
| 40 | 7316409600 | Shield,warmer Drawer ,upper |
|
- | |||||
| 41 | 7316409200 | Shiled,warmer ,rh |
|
- | |||||
| 42 | 7316400700 | Shield,wool ,lower |
|
- | |||||
| 43 | 316282700 | Screw,8-18 X 1.438 ,oven Bottom (Replaces: 73131732) |
|
$ 9.93 | |||||
| 44 | 316517600 | Spacer,oven Door (Replaces: 7316517600) |
|
$ 12.05 | |||||
| 45 | 7316508501 | Shield,flue |
|
- | |||||
| 49 | 7316540600 | Clip,maintop Mtg ,(2) |
|
- | |||||
| 77 | 7316456700 | Glide,warmer Drawer ,outer/rh & Lh ,(2) |
|
- | |||||
| 82 | 7316400801 | Shield,bake Burner |
|
- | |||||
| 86 | 7316508600 | Receptacle,hinge ,(2) |
|
- | |||||
| 87 | 7316401201 | Bracket,harness |
|
- | |||||
| 88 | 7316232700 | Rod,auto Latch |
|
- | |||||
| 90 | 7316401100 | Shield,main Front |
|
- | |||||
| 91 | 7316401000 | Shield,front ,burner |
|
- | |||||
| 106 | 7316404100 | Bracket,motor Mtg. |
|
- | |||||
| 107 | 7316026702 | Cover,fan |
|
- | |||||
| 109 | 318398302 | Blade,fan (Replaces: 7316136400) |
|
Immediately | $ 29.11 | ||||
| 111 | 316136600 | Nut,fan Retainer (Replaces: 7316136600) |
|
Immediately | $ 19.13 | ||||
| 120 | 7316279204 | Bracket,stiffener ,rh |
|
- | |||||
| 121 | 7316279205 | Bracket,stiffener ,lh |
|
- | |||||
| 151 | 7316404600 | Shield,bodyside |
|
- | |||||
| 170 | 7316112004 | Anti Tip Kit,assembly |
|
- | |||||
| 264 | 7316404700 | Bracket,air Dam |
|
- | |||||
| 13A | 7316543000 | Bracket,lever ,lower ,rack Sensing |
|
- | |||||
| 30A | 7316217701 | Bracket,hinge ,lh ,main Top |
|
- | |||||
| 41A | 7316409201 | Shield,warmer ,lh |
|
- | |||||
| 58A | 7316403700 | Insulation,oven Wrapper |
|
- | |||||
| 58B | 7316403601 | Insulation,oven Back |
|
- | |||||
| 58G | 708067973 | Insulation,main Front |
|
- | |||||
| 5A | 5304509869 | Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg (Replaces: 7316498900) |
|
Immediately | $ 15.08 | ||||
| 6A | 7318219500 | Rack,broiler Pan |
|
- | |||||
| 6B | 7316496205 | Rack,oven |
|
- | |||||
| 6C | 7316498003 | Rack,oven ,(1) |
|
- | |||||
| F108 | 5304467897 | Motor-convection (Replaces: 7316459100) |
|
$ 231.90 | |||||
| F15 | 5304523863 | Lamp,oven ,(2) ,halogen (Replaces: 7316510700) |
|
Immediately | $ 69.01 | ||||
| F161 | 7316211604 | Element,convection Fan ,200 W |
|
- | |||||
| F170 | 7316541700 | Template,anti-tip |
|
- | |||||
| F170 | 7316107200 | Bracket,anti-tip |
|
- | |||||
| F170 | 7316116000 | Screw,concrete ,1.75`` ,anti-tip Brkt |
|
- | |||||
| F18 | 316405800 | Latch Assembly,oven Door (Replaces: 7316405800) |
|
Immediately | $ 56.74 | ||||
| F37 | 316490000 | Probe,oven Temp (Replaces: 7316490000) |
|
Immediately | $ 58.30 | ||||
| F39 | 73131425 | Cord,electric Power |
|
- | |||||
| F89 | 7316464300 | Motor-latch |
|
- | |||||
| F92 | 7316539900 | Filter,noise ,lock Motor ,suppressor |
|
- | |||||
| FNI | 7316512529 | Harness Wiring,main |
|
- | |||||
| NI | 7316418901 | Screw,trilobe ,10-32 X 5/16`` ,(4) |
|
- | |||||
| NI | 75303285179 | Screw,wafer Head ,8-32t X 0.500 ,black |
|
- | |||||
| NI | 316008401 | Washer,3/4 Od X 1/4 Id ,steel (Replaces: 7316008401) |
|
$ 11.34 | |||||
| NI | 7316432800 | Clip,wire |
|
- | |||||
| NI | 7316279600 | Screw,bracket ,stiffener ,(4) |
|
- | |||||
| NI | 73203550 | Plug,button ,oven Bottom |
|
- | |||||
| NI | 7316021105 | Screw,hex Head Cup Pt ,8-18 X 0.375 ,black |
|
- | |||||
| NI | 7316021109 | Screw,8-18 X 0.5 ,chrome |
|
- | |||||
| NI | 7316021110 | Screw,8-18 X 0.5 ,black |
|
- | |||||
| NI | 7316089500 | Screw,10-16 X .486 |
|
- | |||||
| NI | 75303271648 | Screw,wafer Hd Sq Dr ,8-18ab X 0.5 |
|
- |
