01 - Cover Sheet

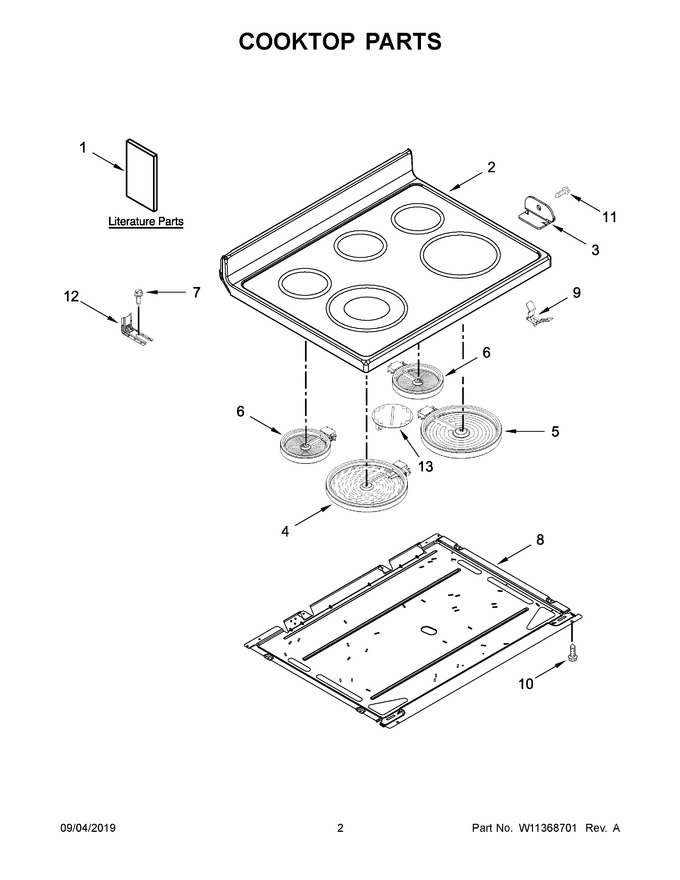

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10877842		Instructions, Installation		Appelez-nous	-
2	W11091927		Cooktop (black)   (Replaces: W11022824)				$ 728.16
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 121.00
5	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 119.21
6	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: W10248261)			Immediately	$ 164.01
7	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
8	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.47
11	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 12.62
12	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
13	W11041453		Element, Warm Zone   (Replaces: W10799048)				$ 113.96
1A	W11037227		Use And Care Guide (english)		Appelez-nous	-
1B	W11037228		Use And Care Guide (french)		Appelez-nous	-
1C	W10842032		Sheet, Tech		Appelez-nous	-
1D	W11032798		Wiring, Diagram		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11188502		Harness, Main				$ 162.79
NI	W11675846		Harness, Cooktop (left)   (Replaces: W11134603)				$ 34.00
NI	W11596058		Harness, Cooktop (right)   (Replaces: W11134551)			Immediately	$ 29.79
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 7.61
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 23.16
